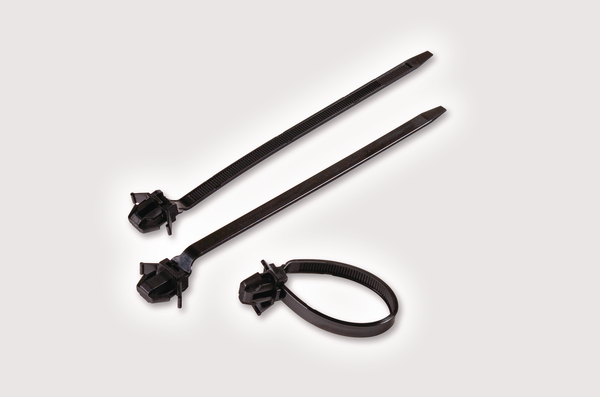

Fixing tie for hole (round), inside serrated, ⌀1.6-26.0mm, black, 100pcs.
Art.-No. 126-00273
| OS150-WPM712-PA610-BK
|
Copied
- Bundling and fixing solution
- Ideal combination of materials and design
- Different positions of the fixing anchor are available to fit installation space
Request quote
More products in this product group:
| Application | For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 610 (PA610) |
| Min.Tensile Strength | 150N |
| PART DESCRIPTION | OS150-WPM712-PA610-BK |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | OS150-WPM712 |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | OS150-WPM712 |
| UV-Stabilised | Yes |
| Bundle ⌀ max. | 26.0mm |
| Bundle ⌀ min. | 1.6mm |
| Height (H) | 11.0mm |
| Length (L) | 150mm |
| Panel Thickness | 0.04 - 0.13" |
| Panel Thickness | 1.2 - 3.5mm |
| Panel Thickness max. (imperial) | 0.13" |
| Panel Thickness min. (imperial) | 0.04" |
| Thickness (T) | 1.75mm |
| Width (W) | 6.0mm |
| for Hole ⌀ (FH) | 7.0 x 12.0 mm |
| for Panel Thickness min - max | 1.2 - 3.5 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +150 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. EarthSource denotes HellermannTyton products made from polymers derived from abundant renewable plant-based sources or from the ground underneath. |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
