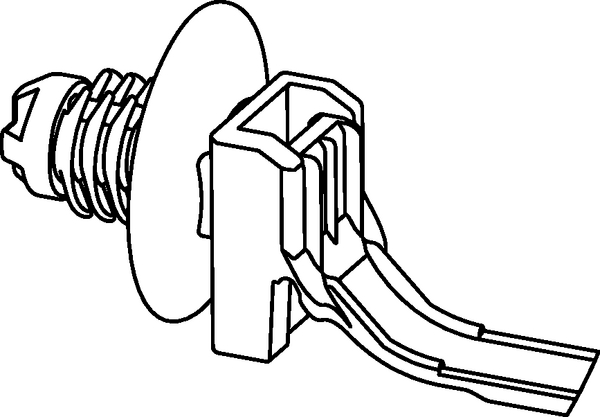

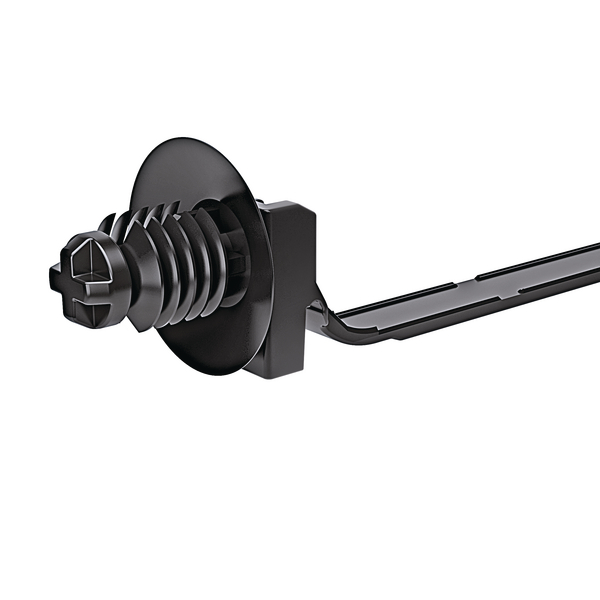

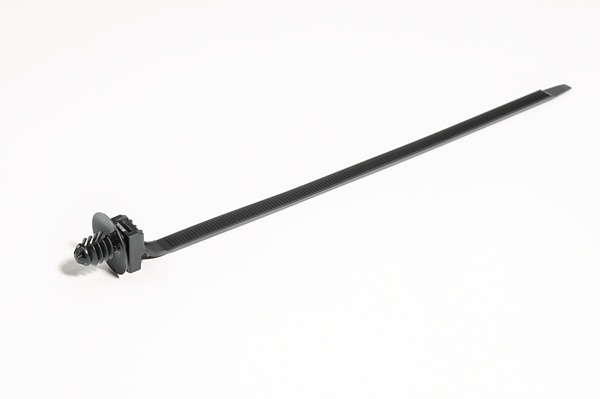

Fixing tie for hole (round), outside serrated, Ø1.6-30.0mm, black, 100pcs.
Art.-No. 157-00019 | OS170-FT7-LH-PA66-BK Details

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

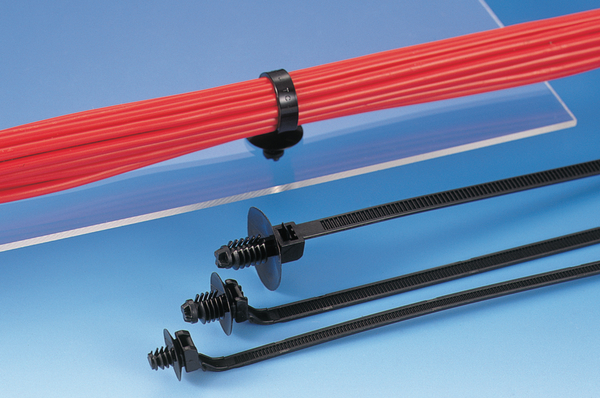

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK21, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION OS170-FT7-LH-PA66-BK
Product Family Fir tree parts FT7
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Bundle Diameter max (metric) 30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.8 - 7.2 mm
for Panel Thickness min - max 0.6 - 4.5 mm
Hole Depth 9.9mm
Length (L) 170mm
Length (L2) 16.9mm
Min.Tensile Strength 147N
Thickness (T) 1.4mm
Width (W) 5.3mm
Width (W2) 8.8mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
GTIN-13 / EAN 4944387938562
Packaging 1 - Height (m) 0.058m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00255
Packaging 1 - Weight (kg) 0.163001kg
Packaging 1 - Width (m) 0.2m

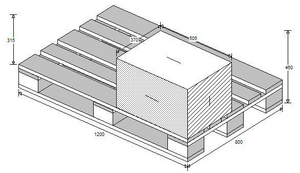

Packaging 3 - Height (m) 0.315m
Packaging 3 - Length (m) 0.505m
Packaging 3 - Qty 2500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0589
Packaging 3 - Weight (kg) 4.605kg
Packaging 3 - Width (m) 0.37m

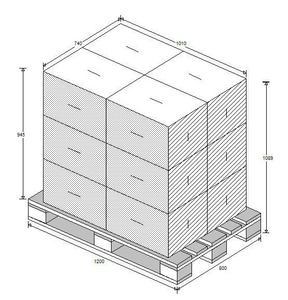

Packaging 4 - Height (m) 1.089m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.045
Packaging 4 - Weight (kg) 76.26kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
