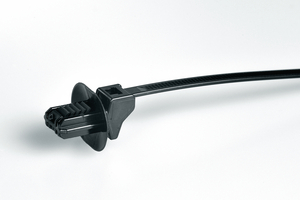

1-piece fixing ties with fir tree, with disc
Art.-No. 920-30026 | OS180FT6513-PA66HS-BK |

This 1-piece fixing tie with fir tree design for oval holes features anti-twist protection.

1-piece fixing tie with fir tree, with disc, for oval holes

Cable tie head always situated in defined position
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes
Versions for oval holes feature anti-twist protection

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

1-piece fixing ties with fir tree, with disc >

Base Data
Product Dimensions

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Colour	Black (BK)
Description	1-piece fixing tie with fir tree, with disc, for oval holes
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	OS180FT6513-PA66HS-BK
Package Content packed in	bag
Product Family	for oval holes
Product Group	1-piece fixing ties with fir tree, with disc
Type	OS180FT6513

Product Dimensions

Bundle ⌀ max.	33.0mm
Bundle ⌀ min.	1.0mm
Disc ⌀	16.0 x 21.0mm
Height (H)	11.3mm
Length (L)	180mm
Min.Tensile Strength	225N
Panel Thickness max.	0.7 – 5.2mm
Thickness (T)	1.5mm
Width (W)	5.1mm
for Hole ⌀ (FH)	6.5 x 13.0 mm
for Panel Thickness min - max	0.7 - 5.2 mm

Specifications

Operating Temperature

-40 °C to +105 °C

Logistics and Packaging

GTIN-13 / EAN

4031026664330
