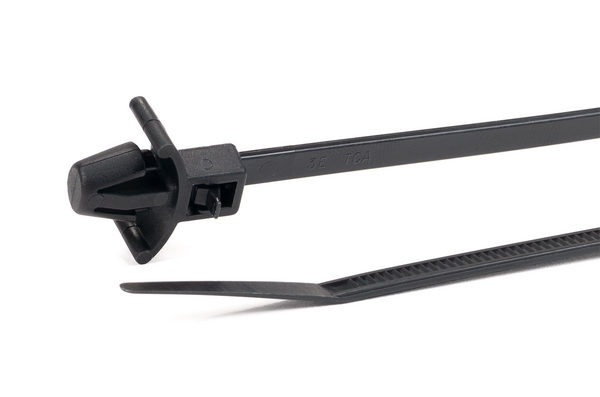

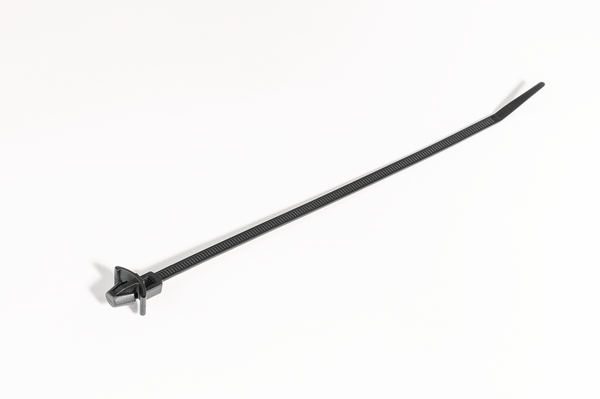

1-Piece Fixing Ties with Arrowhead, with Wings, releasable : RT50RSF
Fixing Tie 215x4.6 black, Article number: 115-07010
Features
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
- Releasable and therefor reusable
- “Ladder style” types are very flexible
Certifications & Approvals
Application
With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
1-Piece Fixing Ties with Arrowhead, with Wings, Releasable, for Round Holes is suitable for following markets and industries
More products in this product group
1-Piece Fixing Ties with Arrowhead, with Wings, releasable >| Anti rotation (Yes / No) | NO |
| Application Tool | MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, European EVO9 tool |
| Colour | Black (BK) |
| Fixation Method | Arrowhead |
| Fixing Hole Shape | Circular |
| Identification Plate Position | none |
| Pack Content | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | RT50RSF-PA66-BK |
| Product Family | 1-Piece Fixing Ties with Arrowhead, with Wings, Releasable, for Round Holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings, releasable |
| Releasable Closure (Yes/No) | Yes |
|
|
|
| Bundle ∅ max. | 50.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 18.5mm |
| for Hole ∅ (FH) | 7.8 - 8.2 mm |
| for Panel Thickness min - max | 0.8 - 2.5 mm |
| Height (H) | 9.5mm |
| Length (L) | 215mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.5mm |
| Width (W) | 4.6mm |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Material | PA66 |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660136221 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.36m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0034m³ |
| Packaging 1 - Weight (kg) | 0.212kg |
| Packaging 1 - Width (m) | 0.21m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 7.153kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 164.06kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.212kg |
