Fixing tie with pipe/tube holder, inside serrated, ⌀5-30mm, black, 100pcs.
Art.-No. 156-00520 | T30ROC5J-PA66HSUV-BK |

Copied

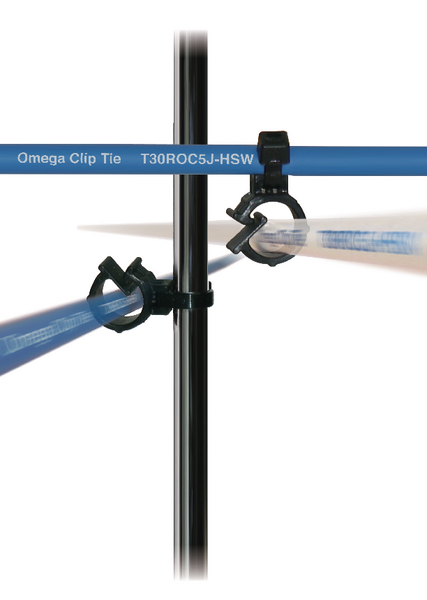

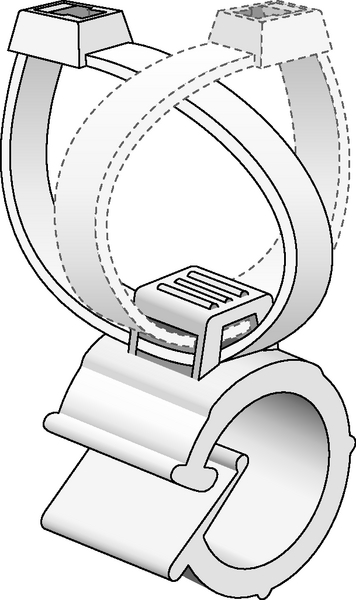

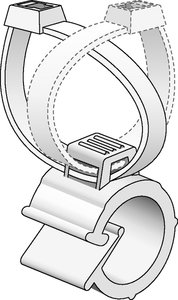

    • Fixed the cable and piping in the tie, the clip portion is freely moved cable installed.
    • The clip portion can be attached to the cable of up to 5mm diameter in one touch.
    • After putting the cable in the clip part, you can adjust the position of the cable by sliding with anti-slip function, the degree of freedom of design is enlarged.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Can be used for fixing on cables, piping, and sliding at the same time.
    Cable Tie Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Colour Black (BK)
    Fixation Method Omega Clip
    Foot Part Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Min.Tensile Strength 135N
    PART DESCRIPTION T30ROC5J-PA66HSUV-BK
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Omega clip tie T30ROC5J_Series
    Product Group 2-piece fixing ties with pipe clip
    Releasable Closure (Yes/No) No
    Type T30ROC5J
    UV-Stabilised Yes
    ⌀ max. 2. loops 5mm
    Attach to ⌀ 11.0
    Attach to Diameter 0.43 "
    Bundle ⌀ max. 30mm
    Bundle ⌀ min. 5mm

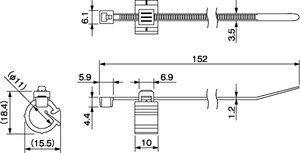

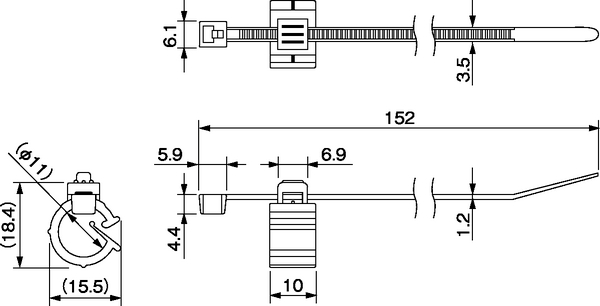

    Cable Tie Head Height (metric) 4.4mm
    Cable Tie Head Length (metric) 5.9mm
    Cable Tie Head Width (metric) 6.1mm
    Length (L) 152mm
    Nominal ⌀ 5.0mm
    Thickness (T) 1.2mm
    Width (W) 3.5mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Operating Temperature Foot Part (Metric) -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4944387957785
    UNSPSC Key 39121717
