21/07/2025

Fixing tie for stud, ⌀1.0-35.0mm, black, 4000
Art.-No. 156-03702 | T30RSBS5-PA66HS-BK |

Copied
Cable ties with various weld stud fixing methods.
T50RSBS5

    • Pre-assembled 2-piece fixing tie with stud retainer
    • Cable tie head can be moved after bundling
    • Easy to install without the need for a tool
    • SB5-types for 5mm studs or 5mm ISO threaded studs
    • Types with discs can retain insulation materials while fixing a cable bundle
    • Oval shape can be adjusted in a lateral position
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Foot Part Polyamide 6.6, heat stabilised (PA66HS)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Min.Tensile Strength 135N
    PART DESCRIPTION T30RSBS5-PA66HS-BK
    Package Content 4000
    Package Content packed in bag
    Product Group 2-Piece Fixing Ties for Weld Studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30RSBS5
    Variant Inside Serrated

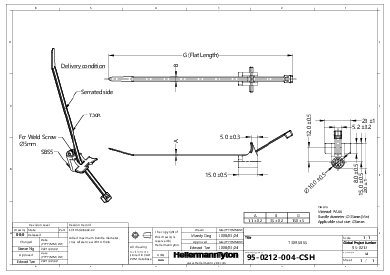

    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 1.0mm
    Height (H) 1.1mm
    Height (H2) 15mm
    Length (L) 150mm
    Length (L2) 20mm
    Min Stud Length 14.2mm
    Stud ⌀ 5.0 mm
    Thickness (T) 1.1mm
    Width (W) 3.5mm
    Width (W2) 20.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026786353
    UNSPSC Key 39121703
