Fixing tie for hole (round), ⌀1.5-50.0mm, black, 1000pcs.
Art.-No. 157-00277 | T50R6.6TM250-PA66HIRHSUV-BK |

Fir tree foot parts can be used for a variety of panel thicknesses.

Cable tie head always situated in defined position
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

1-piece fixing ties with fir tree, with disc, for round holes >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Colour	Black (BK)
Fixation Method	Fir Tree
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50R6.6TM250-PA66HIRHSUV-BK
Pack Cont.	1000pcs.
Package Content packed in	carton
Product Family	Fir tree parts FT6
Product Group	1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50R6.6TM250
UV-Stabilised	Yes

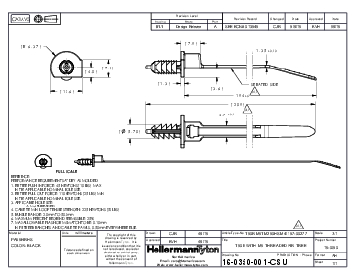

Product Dimensions


Bundle ⌀ max.	50.0mm
Bundle ⌀ min.	1.5mm
Disc ⌀	0.49"
Disc ⌀	12.6mm
Length (L)	202.0mm
Min.Tensile Strength	225N
Thickness (T)	1.4mm
Width (W)	4.6mm
for Hole ⌀ (FH)	M6
for Panel Thickness min - max	2.3 - 13.9 mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


GTIN-13 / EAN	4031026572116
Packaging 1 - Height (m)	0.11m
Packaging 1 - Length (m)	0.37m
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.014245m³
Packaging 1 - Weight (kg)	1.563001kg
Packaging 1 - Width (m)	0.35m
Packaging 3 - Height (m)	0.216m
Packaging 3 - Length (m)	0.60801m
Packaging 3 - Qty	5000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0521m³
Packaging 3 - Weight (kg)	9.48kg
Packaging 3 - Width (m)	0.396875m
Packaging 4 - Qty	75000

More Information

UNSPSC Key

39121703
