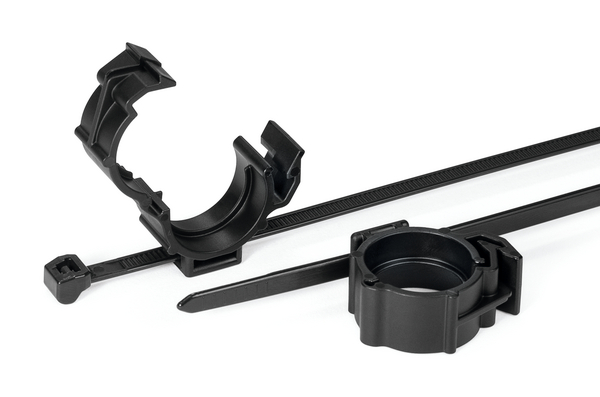

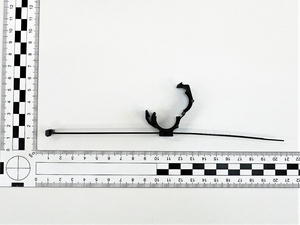

Fixing tie with pipe/tube holder, outside serrated, ⌀4.0-45.0mm, black, 500pcs.
Art.-No. 156-03353 | T50ROSCTCL14A-PA66HS/PA66HIRHS-BK |

Copied
T50ROSCTCL14B, simple and safe guidance of corrugated tubes, cable tie enables parallel guidance.

    • 2-part fastening tie for corrugated conduits, nominal diameter 14.0 mm
    • with cable strap holder for parallel cable routing
    • Secure guidance of the conduit by simple click-in
    • Axial displacement is prevented by the profile in the corrugated conduit holder
    • No need to replace the entire product need to replace the entire product
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application It is a mounting solution for all current and future electric vehicles.
    electric vehicles. In the application we are familiar with, a high-voltage
    high-voltage cable and a low-voltage cable must be routed parallel to each other.
    In the event of maintenance (e.g. replacement of the battery), it should be ensured that both cables
    cables remain together without making direct contact. Both
    cables are protected by a corrugated tube.
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50ROSCTCL14A-PA66HS/PA66HIRHS-BK

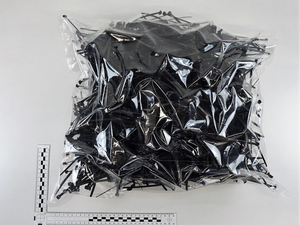

    Package Content 500pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with pipe clip
    Type T50ROSCTCL14A
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 4.0mm
    Length (L) 200.0mm
    Nominal ⌀ 14.0mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026657226
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0715m³
    Packaging 1 - Weight (kg) 1.97888kg
    Packaging 1 - Width (m) 0.65m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 31162906
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
