29/06/2026

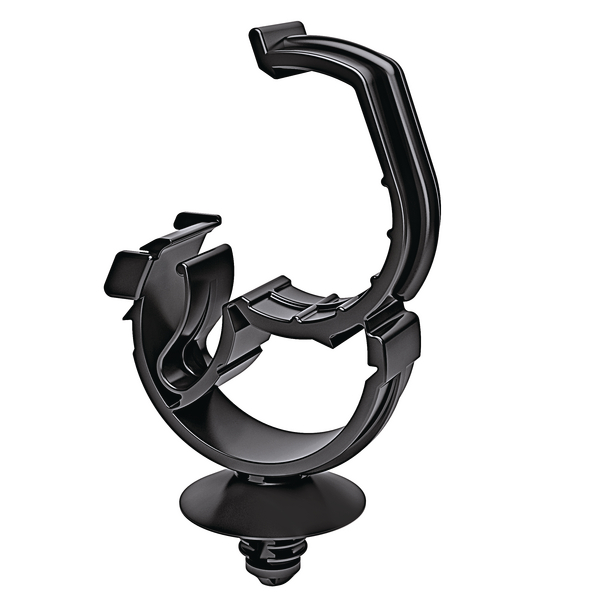

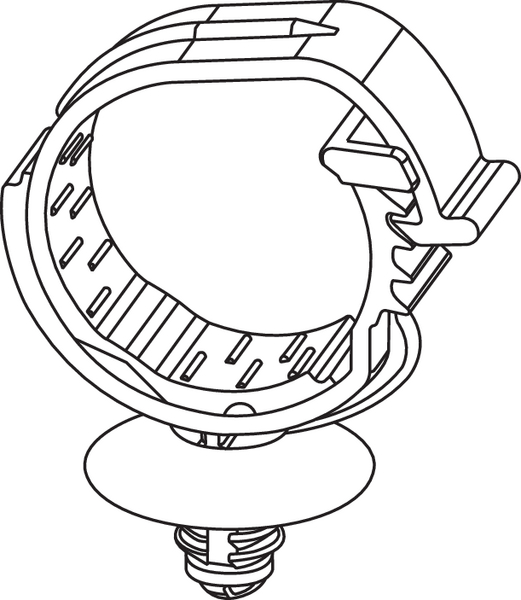

AHC25FT6LG-PA66HIRHS-BK


Art.-No. 151-02746

| AHC25FT6LG-PA66HIRHS-BK

 |

Copied

    • Allows simple and secure fixing of cables
    • Automatic closure to save time during installation
    • Can be easily reopened
    • Disc adjusts tie for pressures from various directions and minimizes ingress of dust and dirt
    Add to watchlist
    Request quote
    Downloads
    Application Automatic Harnesses Clips were developed to maintain engine harnesses in the automotive industry. They are also use in the electrical industry to maintain tubes and harnesses. Thanks to its versatility and technical specifications, they can adapt to different industries.
    Colour Black (BK)
    Key product features lockable, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AHC25FT6LG-PA66HIRHS-BK
    Package Content 3000pcs.
    Package Content packed in bag
    Type AHC25FT6LG
    Bundle ⌀ max. 22.0mm
    Bundle ⌀ min. 16.0mm
    Disc ⌀ 20.0mm
    Length (L) 34.5mm
    Panel Thickness 0.7 - 4.0mm
    Width (W) 10.0mm
    for Hole ⌀ (FH) 6.4 - 7.0 mm
    for Panel Thickness min - max 0.7 - 4 mm
    GTIN-13 / EAN 4031026617121
    UNSPSC Key 31162305
