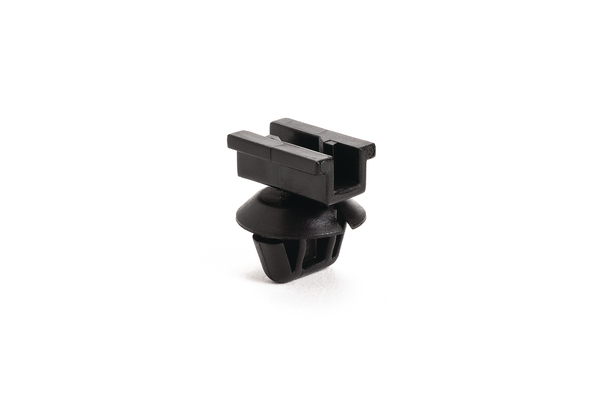

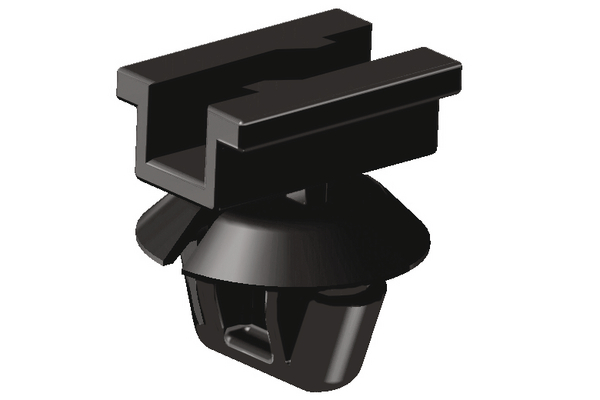

Connector clip for hole (oval), black, 1000pcs.
Art.-No. 155-43802 | CCAMPSFT7.0x12.0-PA66HIRHS-BK |

Copied

    • Simply push ConnectorClips onto corresponding clip
    • Easy to remove without damage for maintenance, repair or recycling
    • Arrowhead locks into place for secure fixing at all times
    • Designed for oval holes
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector clip used here have been desgined in the automotive industry
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCAMPSFT7.0x12.0-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in bag
    Product Group Connector Clips for oval holes
    Type CCAMPSFT7.0x12.0
    Type of connection AMP
    UV-Stabilised No
    Fixing Hole Shape Oval
    Height (H) 17.6mm
    Length (L) 16.0mm
    Panel Thickness 0.04 - 0.08"
    Panel Thickness max. 1.0 - 2.0mm
    Panel Thickness max. (imperial) 0.08"
    Panel Thickness min. (imperial) 0.04"
    Width (W) 16.0mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 1 - 2 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026219905
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 1.129kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.877824kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 218.48kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 31162305
