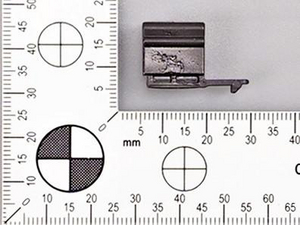

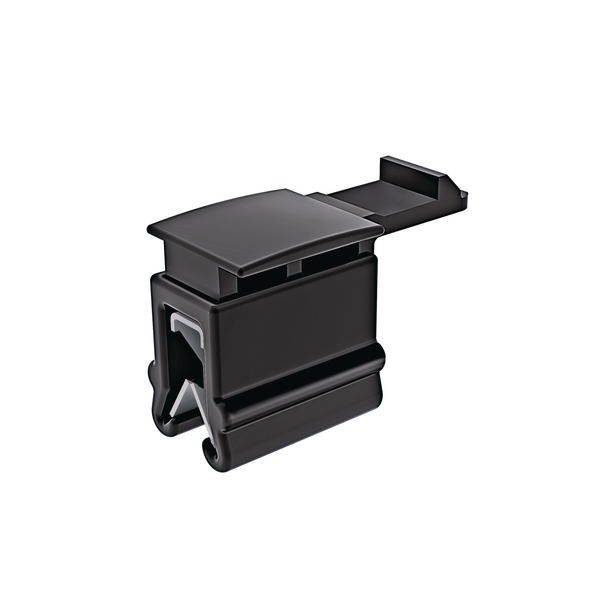

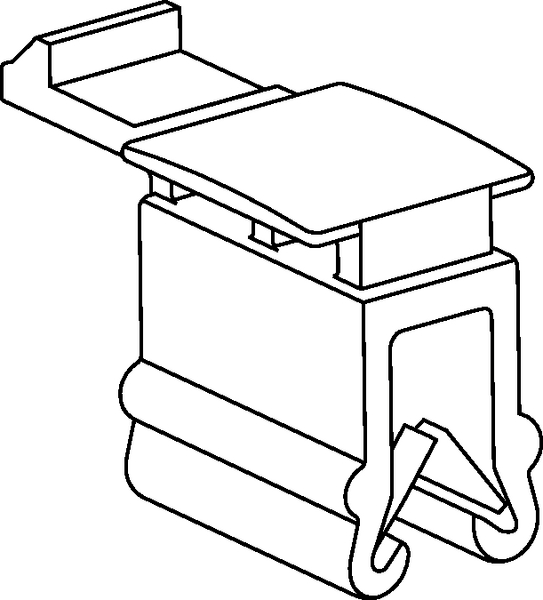

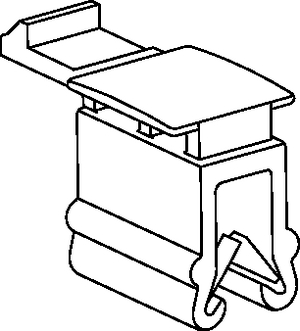

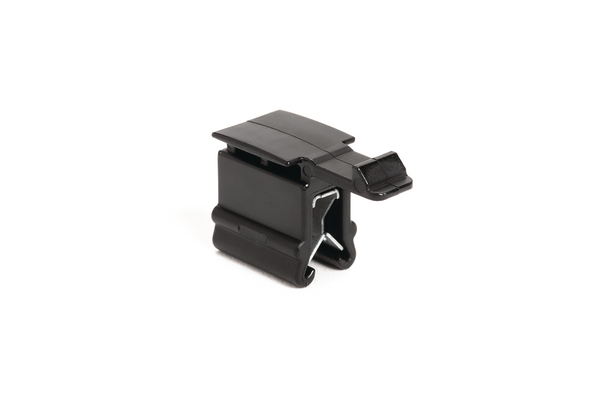

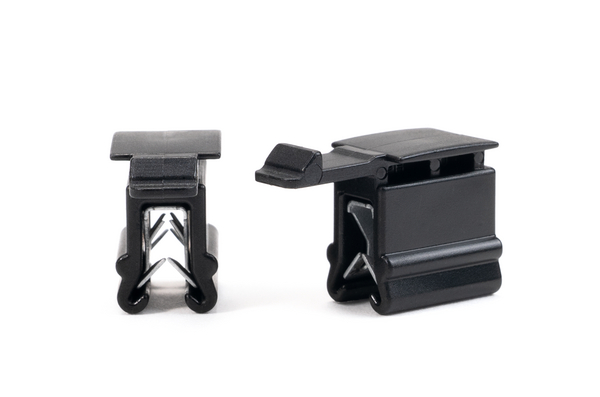

Connector clip for edge, EWCAP-005-11, black, 1000pcs.
Art.-No. 150-92600 | CCEC6-PA66HIRHS-BK |

Copied
Connector clip attaches to surfaces with edge clip.

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible.
    Anti rotation (Yes / No) YES
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCEC6-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in pack
    Product Family 1.0 - 3.0 mm
    Product Group Connector Clips for Edges
    Type CCEC6
    UV-Stabilised No
    Variant 1.0 - 3.0 mm Edge
    Height (H) 15.0mm
    Length (L) 24.0mm
    Panel Thickness 0.04 - 0.12"
    Panel Thickness max. 1.0 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.04"
    Width (W) 10.4mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026203317
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.43m

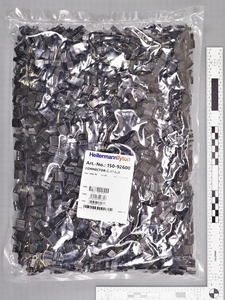

    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.005332m³
    Packaging 1 - Weight (kg) 1.593815kg
    Packaging 1 - Width (m) 0.31m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 16.92815kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 359.6kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 31162305
