18/06/2025

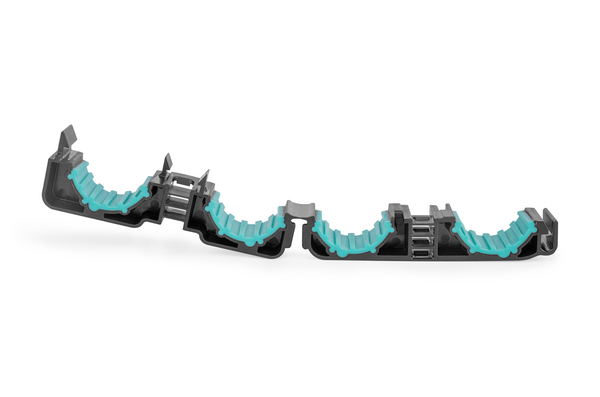

DCTC20SBS6-PA66HIRHS/TPE-BK/GN
Art.-No. 151-04190 | DCTC20SBS6-PA66HIRHS/TPE-BK/GN |

Copied

    • Attach before installing pipe or hose
    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

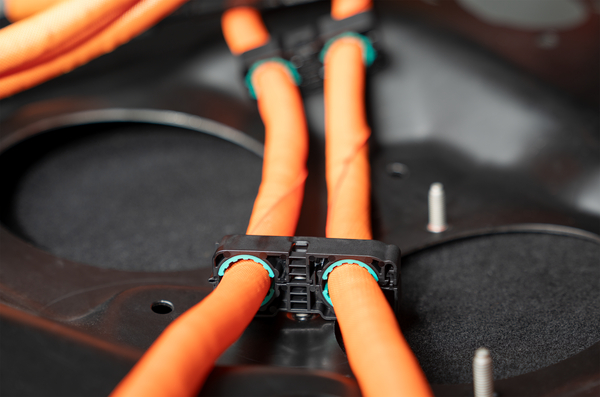

    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK), Green (GN)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION DCTC20SBS6-PA66HIRHS/TPE-BK/GN
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type DCTC20SBS6
    Attach to ⌀ 20
    Height (H) 22.9mm
    Length (L) 146.5mm
    Stud ⌀ M6
    Width (W) 15mm
    GTIN-13 / EAN 4031026740829
    UNSPSC Key 31162305
