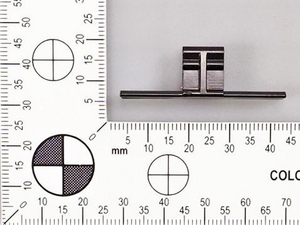

Bundling clip for edge, L=40.0mm, black, 500pcs.
Art.-No. 151-03404 | EC14-PA66HIRHS-BK |

Copied

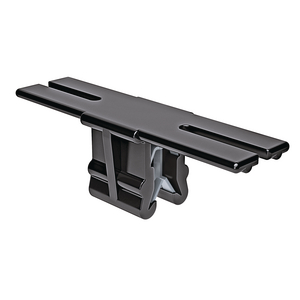

Tape bar provides a convenient surface for securing a bundle using a cable tie or tape.
Cables and leads can be fastened with a cable tie or adhesive tape to the bars of the mounting element.
Tape bar provides a convenient surface for securing a bundle using a cable tie or tape.

    • Easy assembly, just shuffle manually
    • Designed for edges of 1 - 3 and 1.5 - 4 mm

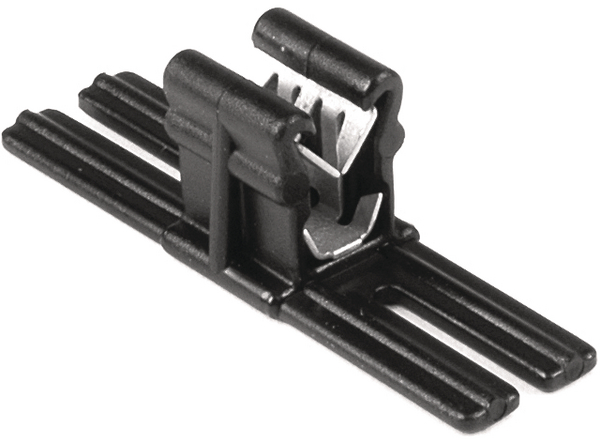

    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered steel spring
    • ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

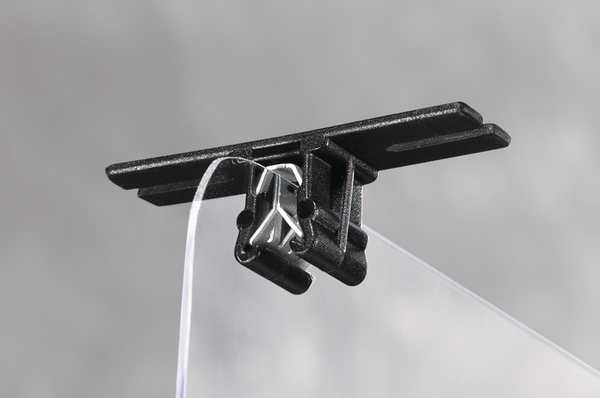

    Application EdgeClips are used in the automotive industries and electrical industries and when it is impossible to drill holes or no other fixing points are available.
    Anti rotation (Yes / No) YES
    Colour Black (BK)
    Fixation Method Edge Clip
    Internet Customer Notice Scroll down for alternative automation-ready products.
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EC14-PA66HIRHS-BK

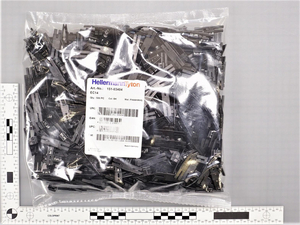

    Package Content 500pcs.
    Package Content packed in pack
    Product Family 1 - 3 mm and 1.5 - 4.0 mm
    Product Group Bundling clips for edges
    Type EC14
    UV-Stabilised No
    Wings on clip base (Yes / No) NO
    Bundling Bar Length 40.0mm
    Height (H) 12.4mm
    Length (L) 40.0mm
    Panel Thickness 0.04 - 0.12"
    Panel Thickness max. 1.0 - 3.0mm
    Panel Thickness max. (imperial) 0.12"
    Panel Thickness min. (imperial) 0.04"
    Width (W) 10.0mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026235530
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.28m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.003528m³
    Packaging 1 - Weight (kg) 0.685kg
    Packaging 1 - Width (m) 0.28m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 12.103792kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.235m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.186m³
    Packaging 4 - Weight (kg) 263.12kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
