11/06/2025

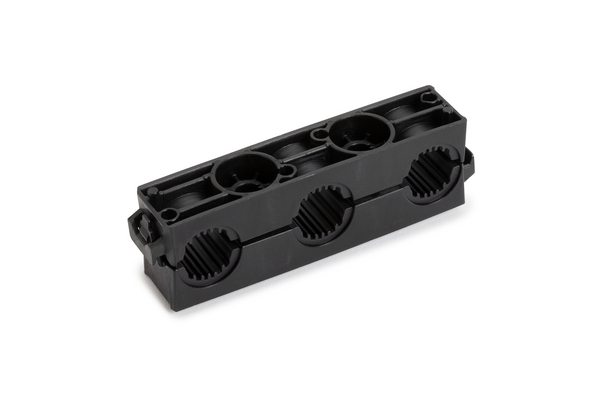

Cable clip for hole (round)/for stud, ⌀M8, Dmin=16.5mm, Dmax=17.5mm
Art.-No. 151-03791 | HDC17x3-PA66GF15/TPE-BK |

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Fixing elements for tubes and harnesses >

Base Data

Colour	Black (BK)
Fixation Method	Stud Mount
Key product features	vibration absorbing, sealed, for multiple routing
Material	Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE)
PART DESCRIPTION	HDC17x3-PA66GF15/TPE-BK
Pack Cont.	350pcs.
Package Content packed in	pack
Product Family	for multiparallel routing
Product Group	Fixing elements for tubes and harnesses
Type	HDC17x3
UV-Stabilised	No

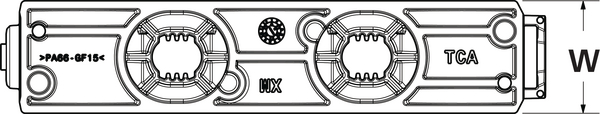

Product Dimensions

⌀ max. 1. loop	17.5mm
⌀ max. 2. loops	17.5mm
Bundle ⌀ max.	17.5mm
Bundle ⌀ min.	16.5mm
Fixing Hole Centres (F)	1.73"
Fixing Hole Centres (F)	44.0mm
Height (H)	36.0mm
Height (H2)	18.0mm
Length (L)	126.3mm
Length (L2)	44.0mm
Width (W)	26.0mm
for Hole ⌀ (FH)	M8

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +125 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


GTIN-13 / EAN	4031026691138
Packaging 1 - Qty	350
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	11.193kg
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Qty	350
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

UNSPSC Key

39121702
