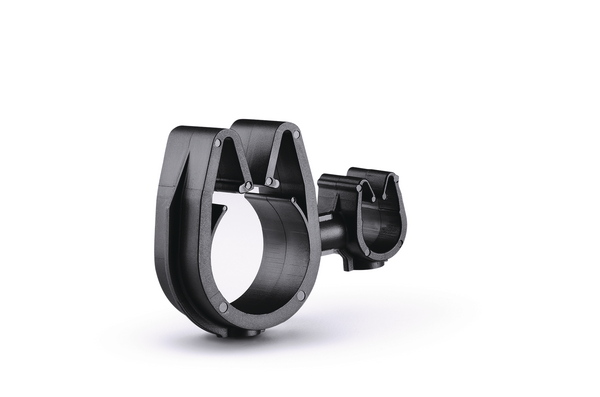

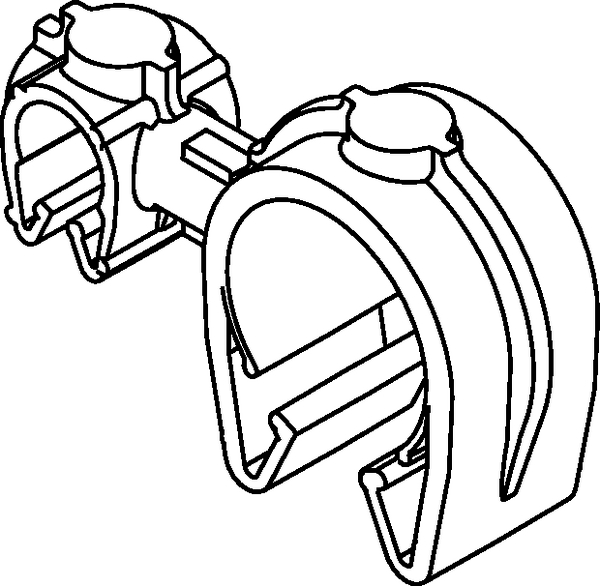

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom⌀=8.0 mm, nom⌀2=19.0 mm
Art.-No. 156-02321 | MOC8FMOC19M-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    • Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
    • Controlled flex and angled entry promote easy installation.
    • Independent rotation allows for adjustable routing orientation.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The MOC to MOC is a rotatable dual routing clip that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC8FMOC19M-PA66HIRHSUV-BK
    Package Content 2000
    Package Content packed in pack
    Type MOC8FMOC19M
    UV-Stabilised Yes
    Variant Clip to Clip
    Bundle ⌀ 2 max. 21.8mm
    Bundle ⌀ 2 min. 17.0mm
    Bundle ⌀ max. 9.0mm
    Bundle ⌀ min. 7.0mm
    Bundle Diameter Nom. (ND) 8.0 mm
    Bundle Diameter Nom. 2 (ND2) 19.0 mm
    Depth (D) 12.0mm
    Height (H) 32.8mm
    Height (H2) 32.8mm
    Length (L) 45.6mm
    Length (L2) 25.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026585772
    Packaging 1 - Qty 1000
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 203.77kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    UNSPSC Key 39121702
