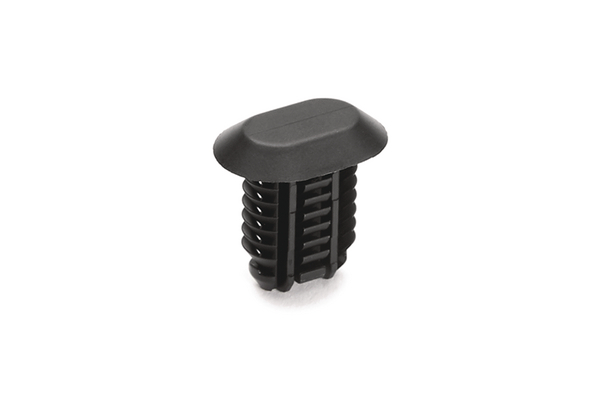

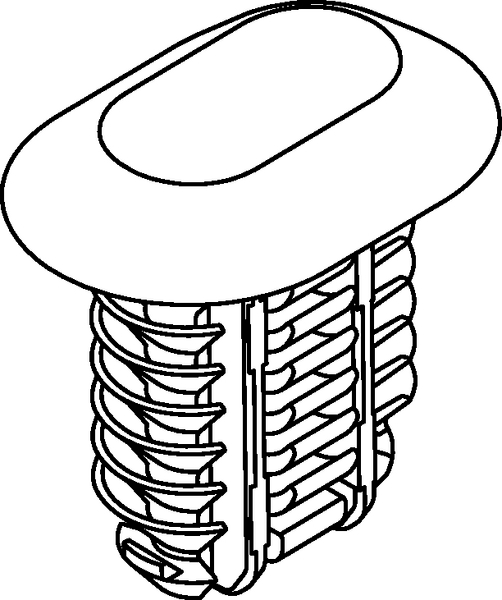

Blind plug, ⌀6.2 x 12.2 mm/6.5 x 12.5 mm, T=0.6 - 8.0mm, black, 3000pcs.
Art.-No. 133-02029
| PLUGFTOVALXL-PA66HIRHSUV-BK
|
Copied
- Easy assembly without the need of a tool
- Disc of the part covers the hole and minimises ingress of dust, dirt and water
- Standard geometry for example fir tree or arrowhead
Request quote
More products in this product group:
| Application | Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons. |
| Colour | Black (BK) |
| Fixation Method | Blind Plug |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | PLUGFTOVALXL-PA66HIRHSUV-BK |
| Package Content | 3000pcs. |
| Package Content packed in | carton |
| Product Group | Blind Plugs |
| Type | PLUGFTOVALXL |
| UV-Stabilised | Yes |
| Fixing Hole Shape | Oval |
| Height (H) | 19.7mm |
| Height (H2) | 16.85mm |
| Hole Depth | 0.6mm |
| Hole Depth | 8.0mm |
| Length (L) | 19.6mm |
| Panel Thickness | 0.02 - 0.31" |
| Panel Thickness | 0.6 - 8.0mm |
| Panel Thickness max. (imperial) | 0.31" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 13.62mm |
| for Hole ⌀ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 8 mm |
| CE Certification | No |
| ELV compliant (Article 4 - 2) | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| GTIN-13 / EAN | 4031026520278 |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 2.700001kg |
| Packaging 3 - Height (m) | 0.1508125m |
| Packaging 3 - Length (m) | 0.43656m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0176m³ |
| Packaging 3 - Weight (kg) | 3.14kg |
| Packaging 3 - Width (m) | 0.2667m |
| Packaging 4 - Height (m) | 1.174m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 147000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.127m³ |
| Packaging 4 - Weight (kg) | 166.53kg |
| Packaging 4 - Width (m) | 0.8m |
