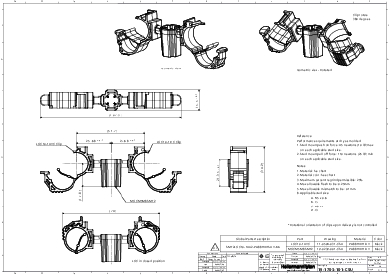

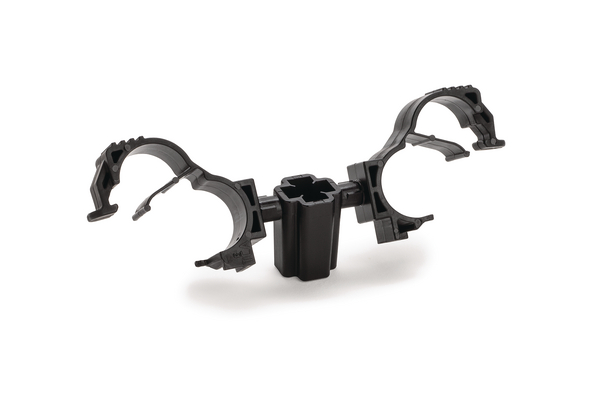

Cable clip for stud, ⌀5.0 mm/6.0 mm, Dmin=10.0mm, Dmax=15.0mm, nom⌀=12.0 mm, nom⌀2=12.0 mm, ⌀5.0 mm/6.0 mm
Art.-No. 156-02843
| SMF2LOC10-14X2-PA66HIRHSUV-BK
|
Copied
- Attach before installing pipe or hose
- Parts labelled 'I' are interlockable for more installation options
- Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
Request your individual offer now
Request quote
| Application | Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.). |
| Colour | Black (BK) |
| Fixation Method | Stud Mount |
| Key product features | for multiple routing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SMF2LOC10-14X2-PA66HIRHSUV-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | pack |
| Releasable Closure (Yes/No) | No |
| Type | SMF2LOC10-14X2 |
| UV-Stabilised | Yes |
| Attach to ⌀ | 12.0 |
| Bundle ⌀ 2 max. | 15.0mm |
| Bundle ⌀ 2 min. | 10.0mm |
| Bundle ⌀ max. | 15.0mm |
| Bundle ⌀ min. | 10.0mm |
| Bundle Diameter Nom. (ND) | 12.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 12.0 mm |
| Depth (D) | 15.5mm |
| Height (H) | 34.9mm |
| Height (H2) | 17.8mm |
| Length (L) | 107.3mm |
| Length (L2) | 51.7mm |
| Nominal ⌀ | 0.47" |
| Nominal ⌀ | 12.0mm |
| Stud ⌀ | 5.0 mm, 6.0 mm |
| for Hole ⌀ (FH) | 5.0 mm, 6.0 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
