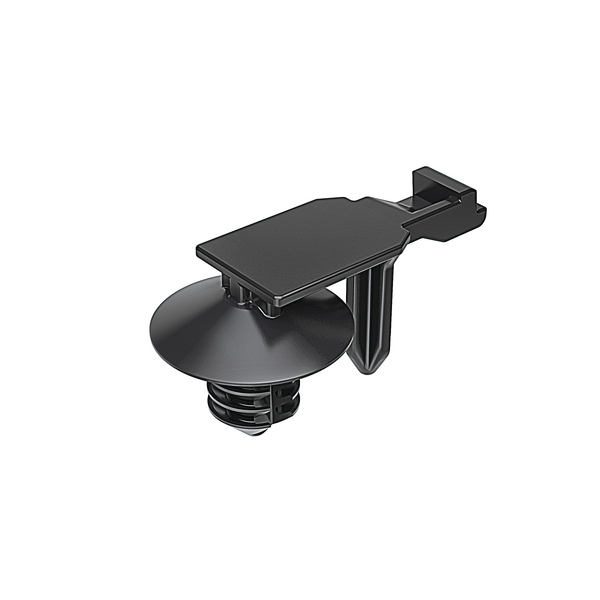

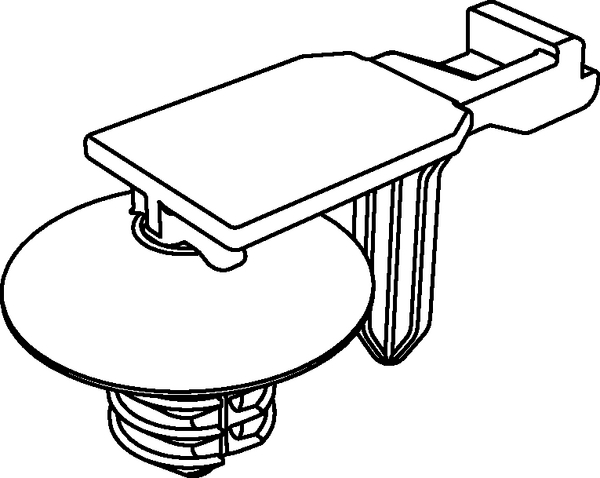

Connector clip for hole (round), EWCAP-005-11, black, 15000pcs.
Art.-No. 151-00965 | YCCFT6LGTS2-PA66HIRHS-BK |  Details

Connector Clips are available for many different connector types and fixing varieties.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Content 15000pcs.
    Package Content packed in bag
    PART DESCRIPTION YCCFT6LGTS2-PA66HIRHS-BK
    Product Family With Fir Tree
    Product Group Connector Clips for round holes
    Disc ∅ 16mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.7 - 5 mm
    Height (H) 16.75mm
    Length (L) 31.25mm
    Width (W) 16.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Specifications
    GTIN-13 / EAN 4031026442624
    Packaging 1 - Qty 15000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 12.366663kg
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.186663kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 179.244kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121702
