Fixing base : LOK01

Wall-plug PA6HIR 44.0x12.0 black, Article number: 151-80110

Features

  • LOK01 – LOK05 usable with any cable ties up to 9 mm wide
  • Suitable for a wide range of materials, including concrete, brick, block and wood

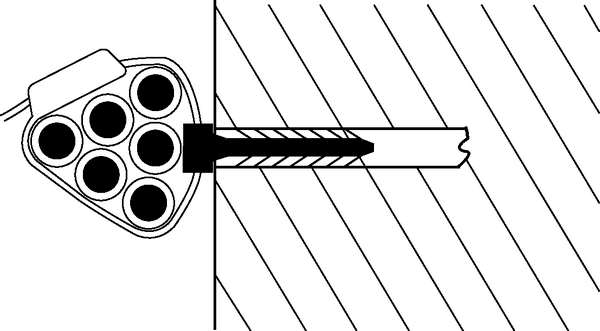

  • Installed by knocking into 7 mm or 8 mm diameter hole
  • LOK01B is designed for soft brickwork and 6 mm holes
  • Elongated head of LOK05 for setting bundles at a distance from brickwork

Certifications & Approvals

Application

The LOK mounts, in conjunction with a cable tie, can be used either indoors or outdoors for a diverse range of applications from holding climbing plants, to securing cables running between buildings.

Colour Black (BK)
Fixation Method with Fir Tree (Mounts)
Pack Content 100pcs.
Package Quantity per bag
PART DESCRIPTION LOK01-PA6HIR-BK
Product Family LOK-Series
Product Group Fixing base
Diameter (D) 9.2mm
for Hole ∅ (FH) 7.0 - 8.0 mm
Length (L) 44.0mm
Length (L2) 6.5mm
Length (L3) 2.5mm
Max. Tie Width (G) 9.0mm
Width (W) 12.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous good No
Material Polyamide 6, high impact modified (PA6HIR)
Material PA6HIR
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 5022660019517
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.15m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00297
Packaging 1 - Weight (kg) 0.2kg
Packaging 1 - Width (m) 0.33m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 5000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 10.75kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 193.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.2kg
