Bottle Shapes, VG style
Art.-No. 401-55820 | 155-42-B7-PO-X-BK |

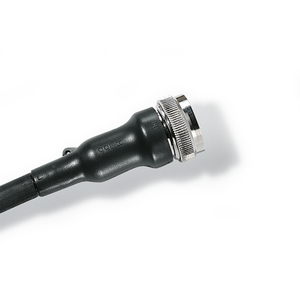

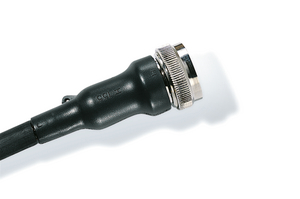

150 Series boot recovered onto a connectors.

150 Series supplied.

a: Expanded form (supplied)

b: Fully recovered form (after heating)

Use in conjunction with circular grooved adaptors
Strengthened strain relief by usage of an additional inner lip
Excellent protection against environment impacts
Eliminates moisture ingress to harness

Stock item

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Bottle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	155-42-B7-PO-X-BK
Package Content	1pc.
Package Content packed in	pcs.
Product Family	Helashrink 150 Series, with rib
Product Group	Bottle Shapes, VG style
Shrink Ratio	up to 4.5:1
Type	155-42-B7
UV-Stabilised	No
Variant	For plug

Product Dimensions


⌀H max. b	18mm
⌀H min. a	31mm
⌀J max. b	7mm
⌀J min. a	31mm
Flexibility	semi rigid
For Object Outside Diameter	20.6-28.4 mm
HW ± 20 %	1.8mm
JO ± 10 %	18.0mm
JW ± 20 %	1mm
JW ± 30 %	1.0mm
P ± 10 %	67mm
R nom.	35mm
R ± 10 %	35mm
S nom.	18mm
S ± 10 %	18mm
T ± 20 %	1mm
V max.	3.3mm
V ± 10 %	3mm

Downloads

Specifications

Dielectric Strength	14kV/mm
ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
Min. Shrink Temperature - °C	+135 °C
Nato number	5970-01-003-3084, 5970-99-661-3215, 5970-01-154-2207
Operating Temperature	-70 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Specifications	DAN218

Logistics and Packaging


GTIN-13 / EAN	5022660432408
Packaging 1 - Height (m)	0.04m
Packaging 1 - Length (m)	0.13m
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00052m³
Packaging 1 - Weight (kg)	0.010001kg
Packaging 1 - Width (m)	0.1m

More Information

UNSPSC Key

39121721
