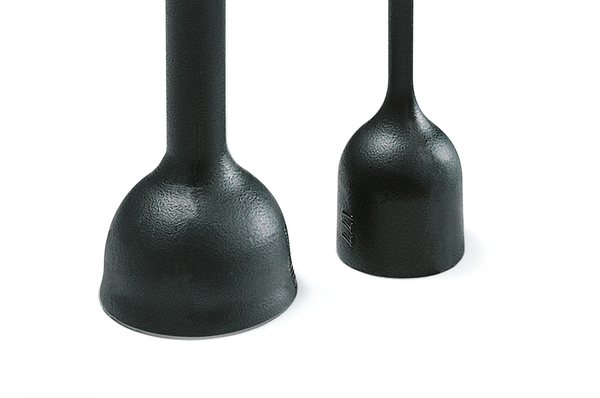

Bottle Shapes, VG style


Art.-No. 401-77023

| 177-1-G-PO-X-BK

 |

Copied
  • Cable strain relief for partially loaded connectors
  • Small cable diameters
  • Use with our W24 adhesive for excellent chemical resistance

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 177-1-G-PO-X-BK
Package Content 1pc.
Package Content packed in bag
Product Family Helashrink 170 Series, with rib
Product Group Bottle Shapes, VG style
Type 177-1-G
UV-Stabilised No
Variant For plug

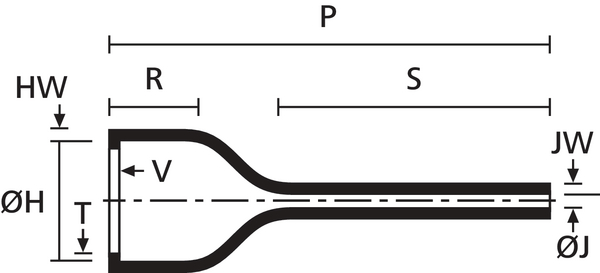

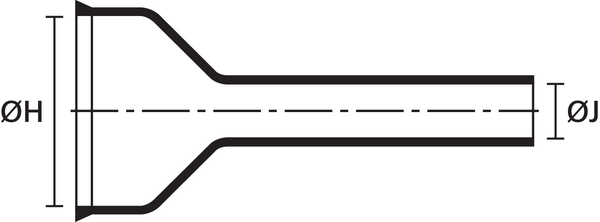

⌀H max. b 19.1mm
⌀H min. a 26.1mm
⌀J max. b 2.6mm
⌀J min. a 7.6mm
Flexibility semi rigid
For Object Outside Diameter 20.5-24.7 mm
HW ± 20 % 1.8mm
JW nom. 1.1mm
JW ± 30 % 1.1mm
P ± 10 % 74.2mm
R nom. 12mm
R ± 10 % 12.2mm
S nom. 45mm
T ± 20 % 1mm
Tube Shape Bottle
V max. 3.3mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Min. Shrink Temperature - °C +135 °C
Nato number 5970-01-173-1844, 5970-12-196-5887
Operating Temperature -75 °C to +150 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Tensile Strength 15MPa
GTIN-13 / EAN 5022660439728
UNSPSC Key 39121721
