2-Way Outlet Shapes, VG style : 203-1-G

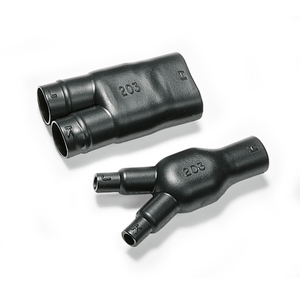

2-Way Outlet Shape VG-Style black, PO-X, Article number: 402-03180

Features

  • Mechanical tension relief in cable harnesses

Certifications & Approvals

Application

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.

Application Tool H6100, E4500
Colour Black (BK)
Pack Content 1pc.
Package Quantity per pcs.
PART DESCRIPTION 203-1-G-PO-X-BK
Product Family Helashrink 200 Series
Product Group 2-Way Outlet Shapes, VG style
Variant For 2-core cables
HW ± 20 % 2.5mm
HW ± 30 % 2.5mm
JW nom. 1.5mm
JW/KW ± 20% 1.5mm
JW/KW ± 30% 1.5mm
JW/KW ± 30% 1.5mm
P ± 10 % 80.0mm
P ±10%=overall length 80.0mm
R nom. 38.0mm
R ± 10 % 38.0mm
S nom. 43.0mm
∅H max. b 12.0mm
∅H min. a 27.0mm
∅J max. b 6.0mm
∅J min. a 13.0mm
Designation as per VG-Norm VG 95343 T08 C 002 A
Dielectric Strength 15 kV/mm
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous good No
Material Polyolefin, cross-linked (PO-X)
Material PO-X
Nato number K1793
Operating Temperature - °C -75 °C to +150 °C
Specifications
Specifications DEF STAN 59-97/3, JN1000T, VG 95343-8:2016-03
EAN / GTIN 5022660635496
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00026
Packaging 1 - Weight (kg) 0.01kg
Packaging 1 - Width (m) 0.1m
Weight 0.01kg
