Low Profile Transition Boots


Art.-No. 422-40031

| 412H622-7-PO-X-BK

 |

Copied
412H622-625 Series supplied / fully recovered.

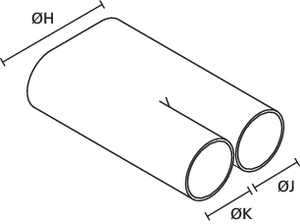

a: Expanded form (supplied)

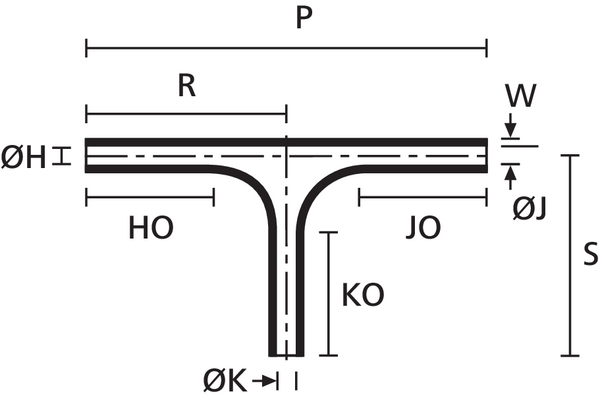

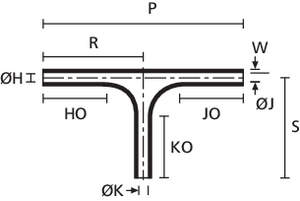

b: Fully recovered form (after heating)

    • Connector cable strain relief
    • Used with circular adaptors
    Add to watchlist
    Request quote
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 412H622-7-PO-X-BK
    Package Content 5pcs.
    Package Content packed in bag
    Product Family Helashrink 412H Series, side breakout
    Product Group Low Profile Transition Boots
    Shrink Ratio 3:1
    Type 412H622-7
    Variant For 2-core cables
    ⌀H max. b 6.6mm
    ⌀H min. a 19.8mm
    ⌀J max. b 6.6mm
    ⌀J min. a 13.2mm
    Flexibility semi rigid
    For Object Outside Diameter 9.24-17.16 mm
    HO/JO/KO ± 10% 25.4mm
    P nom. 80.7mm
    R/S nom. 40.3mm
    W nom. 1.0mm
    Dielectric Strength 20kV/mm
    Dielectric Strength test method IEC 243
    Flammability ASTM D635
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +120 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    GTIN-13 / EAN 5022660722271
    UNSPSC Key 39121721
