Low Profile Transition Boots : 492H413-9

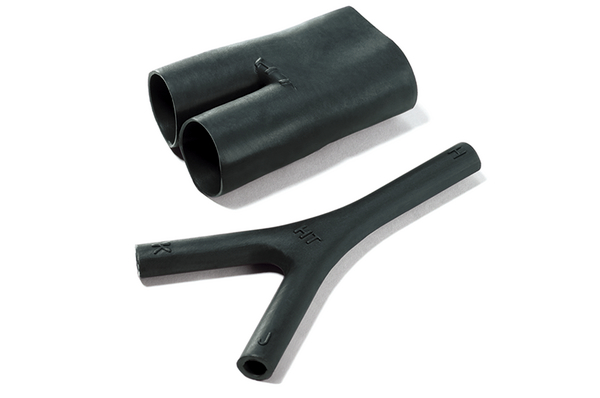

Low Profile Transition Boot 1 to 2 cables black, Article number: 422-50101

Features

  • For cable harness breakouts or transitions
  • Strain relief, sealing and mechanical protection

Certifications & Approvals

Application

military and general performance harnessing

Helashrink 492H Series, 1 to 2 cables is suitable for following markets and industries

Application Tool H5002, H5004, E4500
Colour Black (BK)
Pack Content 5pcs.
Package Quantity per bag
PART DESCRIPTION 492H413-9-PO-X-BK
Product Family Helashrink 492H Series, 1 to 2 cables
Product Group Low Profile Transition Boots
Shrink Ratio 3:1
Variant For 2-core cables
Flexibility Flexible

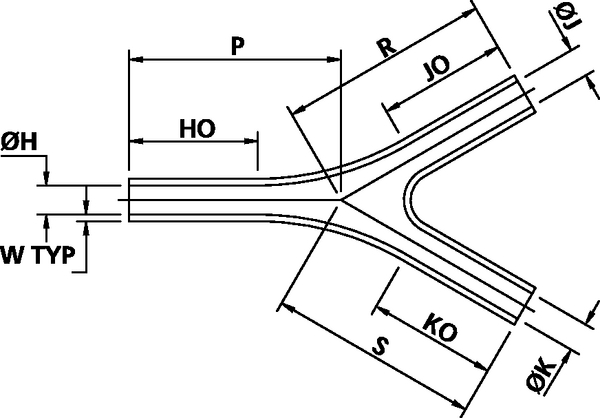

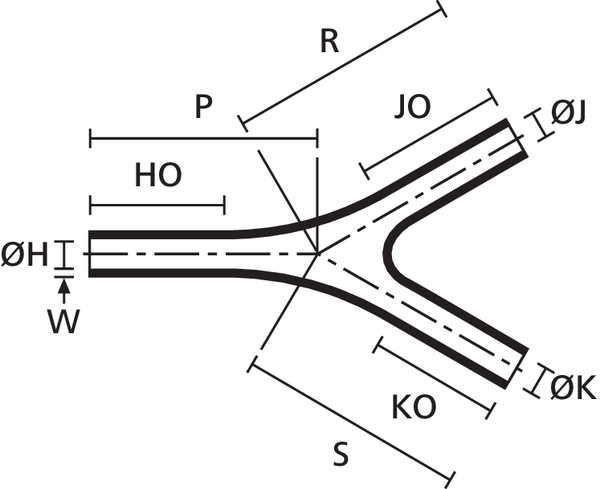

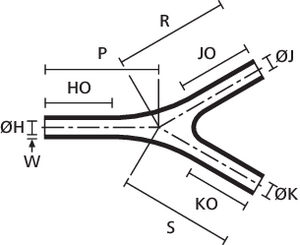

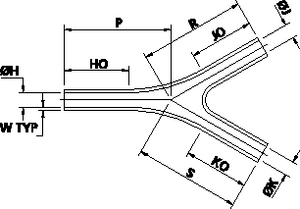

HO/JO/KO ± 15% 41.1mm
P nom. 62.9mm
P ± 10 % 121.4mm
P/R/S nom. 62.9mm
W nom. 1.3mm
∅H max. b 11.4mm

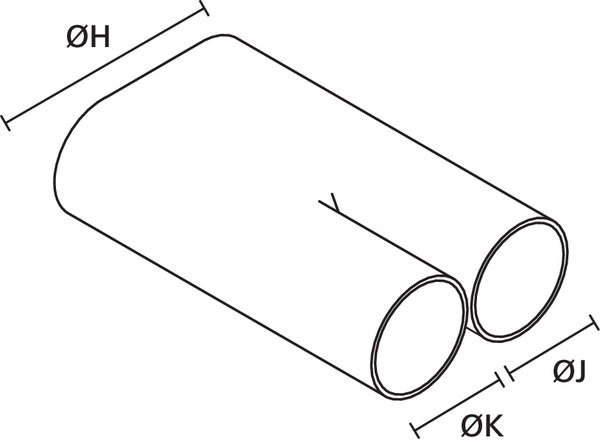

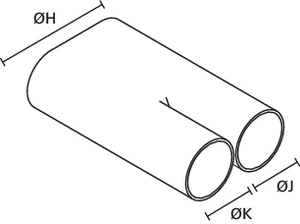

∅H min. a 34.2mm
∅J max. b 11.4mm
∅J min. a 22.8mm
∅J/K max. b 11.4mm
∅J/K min. a 22.8mm
∅K max. b 11.4mm
∅K min. a 22.8mm
Dielectric Strength 20 kV/mm according to IEC 243
ELV compliant (Article 4 - 2) YES
Flammability ASTM D635
Hazardous good No
Material Polyolefin, cross-linked (PO-X)
Material PO-X
Min. Shrink Temperature - °C +100 °C
Operating Temperature - °C -55 °C to +120 °C
Specifications
EAN / GTIN 5022660464904
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.14m
Packaging 1 - Qty 5
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00042
Packaging 1 - Weight (kg) 0.045kg
Packaging 1 - Width (m) 0.06m
Weight 0.045kg
