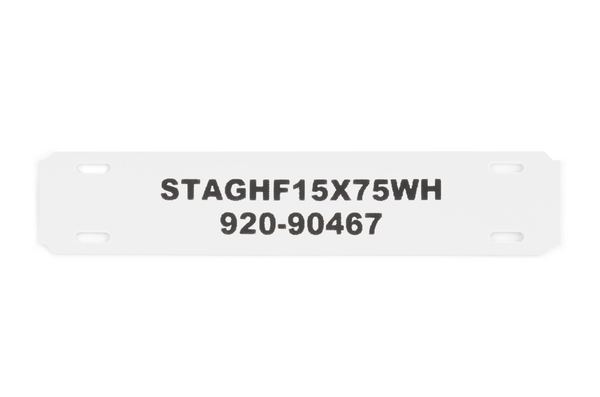

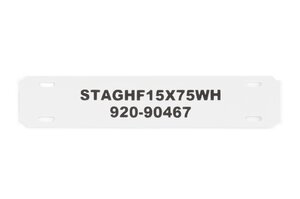

STAGHF15X76-PO-X-WH : STAGHF15X76
Art.-No. 920-90467 | STAGHF15X76-PO-X-WH Details

  • Ideal for marking larger wire and cable bundles.
  • Halogen free.
  • Low smoke propagation and toxicity.
  • Perforated format that includes fastening slots for cable ties.
  • Available in various colours.
Show more

Request your individual offer now

Application The STAG HF cable markers have been designed to identify larger wires and cable bundles not only in the electronics and general cabling environments but also in the railway industry. STAG HF is halogen free and its material properties show low smoke propagation, density and toxicity. STAG HF are presented in a special perforated format which include fastening slots for easy fitting with cable ties. They are also suitable for retrofit purposes. Print from the reel with HellermannTyton's pemium range of thermal transfer printers and ribbons for optimum print quality and longevity.
Colour White (WH)
Description The STAG HF is halogen free, environmentally friendly, tags are made by means of bombardment and cross-linking of the enviromentally friendly polyolefin with high energy electron beams. The tags are attached on large cables and wire bundles with cable ties to meet environment protection and enconomical identification needs in electronics, communications, electric power industries.
Material Polyolefin, chemically cross-linked (PO-X)
Pack Content 1000
Package Content packed in reel
PART DESCRIPTION STAGHF15X76-PO-X-WH
Height (H) 15mm
Length (L) 76mm
Flammability S3 (DIN5510-2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +125 °C
Specifications
Specifications DIN 5510-2, MIL-STD-202G Method 215K, NF F 16-101/16-102, SAE - AS81531
GTIN-13 / EAN 4031026732169
