01/08/2025

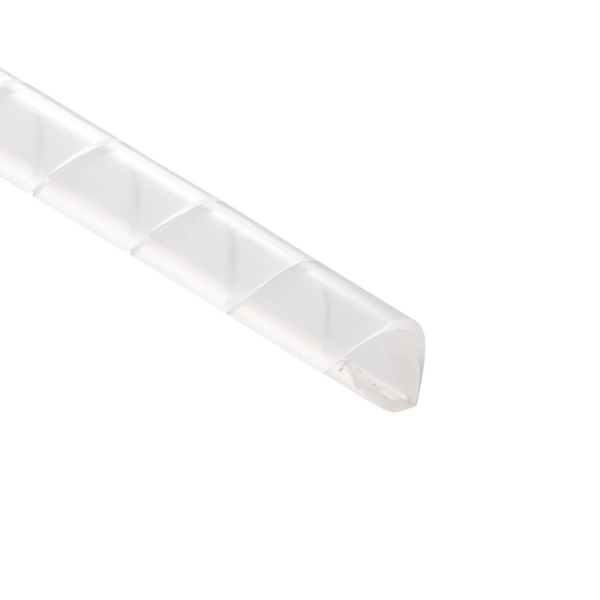

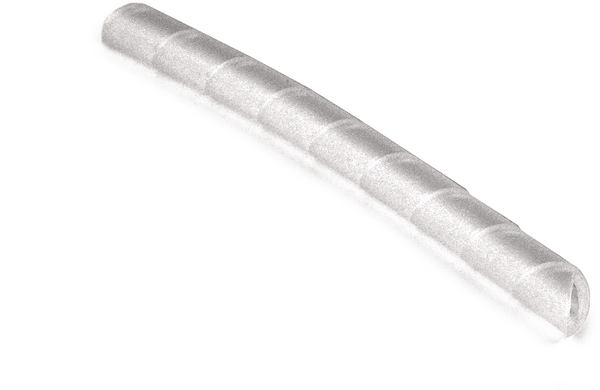

Spiral wrap, nom⌀6.35mm, ⌀4.75-50.8mm, -60 °C to +88 °C, natural, 30.48m
Art.-No. 161-05043 | 2NFP-PE-NA |

Copied
Spiralwrap protective sheathing is reusable and resistant to most chemicals.
Sheathing allows flexible routing and lead-out of cables.
Inner edges of spiralwrap are beveled to prevent damage to cables.

    • For organising and protecting wires, cables and tubes
    • Wide range of diameters and colours
    • Capable of retro-fitting
    • Wires can branch out at any point, in any direction
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyethylene (PE)
    PART DESCRIPTION 2NFP-PE-NA
    Package Content 30.48m
    Package Content packed in pack
    Product Group Spiralwrap
    Type 2NFP
    UV-Stabilised No
    Variant Spiral Binding
    ⌀ D 0.25"
    Bundle ⌀ max. 50.8mm
    Bundle ⌀ min. 4.75mm
    Diameter (D) 6.35mm
    Length (L) 30.48m
    Nominal ⌀ 0.25"
    Nominal ⌀ 6.35mm
    Pitch (P) 0.375"
    Pitch (P) 9.53mm
    Wall (WT) 1.14mm
    Wall (WT) 0.045"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -60 °C to +88 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) Yes
    UL-File Number E147924
    GTIN-13 / EAN 4031026718378
    Packaging 1 - Type roll
    Reel Length 100.0ft
    Reel Length 30.48m
    UNSPSC Key 39131604
    Cable wraps, spiral wraps Cable wraps, spiral wraps

    Cable wraps, spiral wraps

    From standard spiral hoses for office use to flame retardant spiral cable wraps to heat and chemical resistant cable wraps for industry: Discover our portfolio here.
