For mounting to duct fingers : HTWD-NFWR

Wire securing clamp 100x100 mm, PA6, black, Article number: 181-10020

Features

  • Prevents wires from falling out even when vertical routed
  • Easily inserted onto single fingers of duct
  • Height can be freely adjusted
  • Does not block insertion of wirings into slots
  • One retainer for all duct widths: length of retainer can be shortened at break-off points to duct width
  • HTWD-NFWR is compatible with HelaDuct HTWD-PN and HTWD-HF
  • HTWD-WFWR is compatible with HelaDuct HTWD-PW ducts

Certifications & Approvals

Application

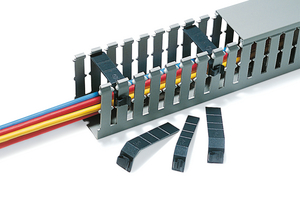

The Narrow Finger and Wide Finger Wire Retainers HTWD-NFWR and HTWD-WFWR are easily attached to HelaDuct wiring duct fingers to hold wires securely in place during installation and when the cover is removed.

HelaDuct HTWD-NFWR and HTWD-WFWR Wire Retainers is suitable for following markets and industries

Adjustable to duct width (Yes/No) Yes
Colour Black (BK)
Current leak stable Yes/No Yes
For Wiring Ducts HTWD-PN, HTWD-HF
Pack Content 100pcs.
Package Quantity per pcs.
PART DESCRIPTION HTWD-NFWR-ABS-BK
Product Family HelaDuct HTWD-NFWR and HTWD-WFWR Wire Retainers
Product Group For mounting to duct fingers
For cable duct height 100mm
For cable duct width 100mm
Width (W) 14mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V0
Halogenfree Yes
Hazardous good No
Material Acrylonitrile Butadiene Styrene (ABS)
Material ABS
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 4031026566931
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.162m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00292
Packaging 1 - Weight (kg) 0.68kg
Packaging 1 - Width (m) 0.212m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 225.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.68kg
