Cable Scout+ is a professional cable puller tool which enables installers to easily route cables, saving time, even with the most challenging installations and places difficult to access.
Cable Scout+ impresses with its new design and improved functionality. Due to a remodelled grip the cable rods can be easily screwed together. All components, rods and attachments, can be stored in the handy storage and carrying bags. Cable Scout+ is supplied with a range of useful standard accessories. Additional accessories can be purchased separately.
This practical and self-explaining cable pulling system facilitates the quick and easy installation of cables via suspended ceilings, behind walls or under floors and many other applications.
Watch this video to see how easy it is to pull in cables with cable puller tool Cable Scout+ and learn more about fitting accessories:
The cable poles are manufactured from high quality Fiberglass, which enables a load carrying capacity of up to 200 kg (approx. 440 lbs). The pulling system Cable Scout+ offers a range of features which allows the electrical installer to illuminate, grip, inspect and retrieve by using the range of accessories.
The pulling system Cable Scout+ is supplied in a useful durable bag which contains the rods and accessories all in one place.
The handy set is made up for fitting in a tool box.
It contains:
• 1 rod x 40 cm (white), 2 rods x 40 cm (red) and 1 rod x 40 cm (blue)
• 40 cm white flexi lead
• Domed bullet
• Mini hook and mini eye
The basic set is designed to perform basic cable installation.
It contains:
• 10 rods x 1 m (white), 15 cm white flexi lead
• Gender changer, tuff hook and mini eye
The most comprehensive set is the deluxe set which is aimed for carrying out larger installations. It contains:
• 2 rods x 1 m (white), 6 rods x 1 m (red), 2 rods x 1 m (blue)
• 15 cm white flexi lead, split ring, gender changer
• Tuff hook, mini eye, domed bullet, flat bullet, beam, single magnet
Cable Scout+ is supplied with a range of useful standard accessories. Additional accessories can be purchased separately.

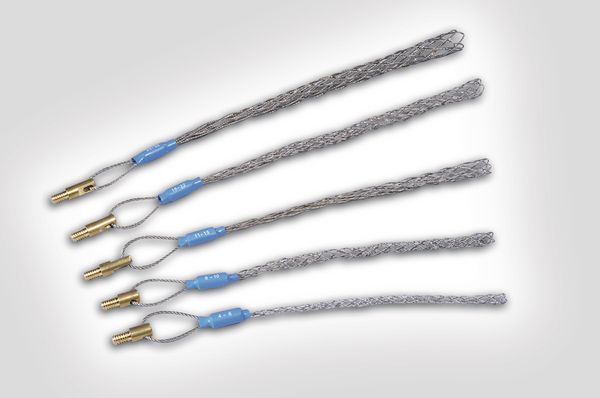

Cable Grips are designed to grip objects and provide reliable and time saving method of securing cables and pipes to the rods. Just open the grip by compressing the braid, push the grip over the cable or pipe and release the grip, which will contract and establish a tight grip on the cable or pipe to the cable puller set.
• Accessory kit includes a lot of useful tools
• User can inspect, illuminate and retrieve
• Cable grips allows a very fast way to pull cables
• Whisk glides smoothly over obstacles
• LED Beam brings light into the dark
• Strong magnet lifts metallic tools up to 2.5 kg weight
TYPE | Description | Article-No. |
CS-SA |
Accessory Kit: Includes a 15 cm long flexi lead, gender changer, mini hook, tuff hook, |
897-90004 |
CS-ACG1630 |
Cable Grip: Suitable for diameter 1.6 - 3.0 cm |
897-90027 |
CS-ACG0415 |
Cable grips: Suitable for diameters 0.4 - 1.5 cm |
897-90026 |
CS-AW |
Whisk: Enables cables to glide over rough and uneven surfaces. |
897-90018 |
CS-AB |
Beam: Useful for inspection purposes in dark surroundings. |
897-90016 |
CS-AMG2 |
Strong Magnet: A helpful tool to lift metal tools with up to 2.5 kg weight |
897-90015 |

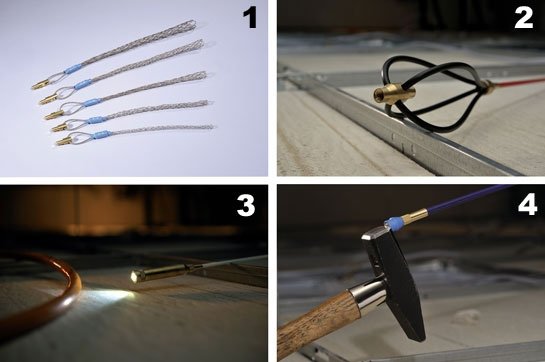

1. Cable Grips are available in five different sizes to attach a wide range of cable diameters.
You can choose between two options:

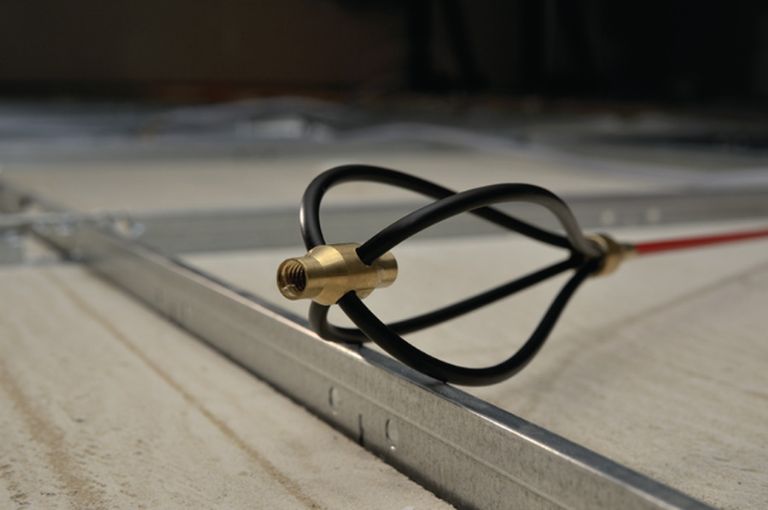

2. The whisk allows the rod to glide over obstructions easily.
Thanks to its special design, cables can be comfortably pulled even over rough and uneven surfaces.

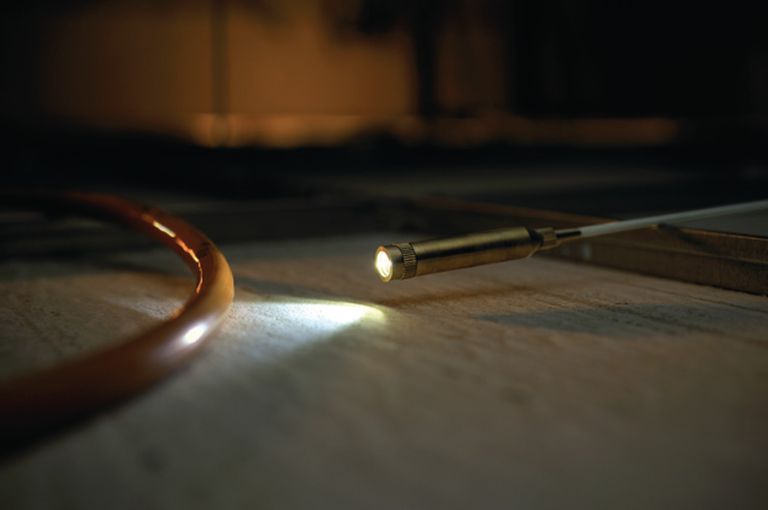

3. The Cable Scout+ Beam – a perfect tool for seeing into cavities.
The useful LED flashlight allows inspection of dark work areas. This is powered by an ordinary AAA battery.

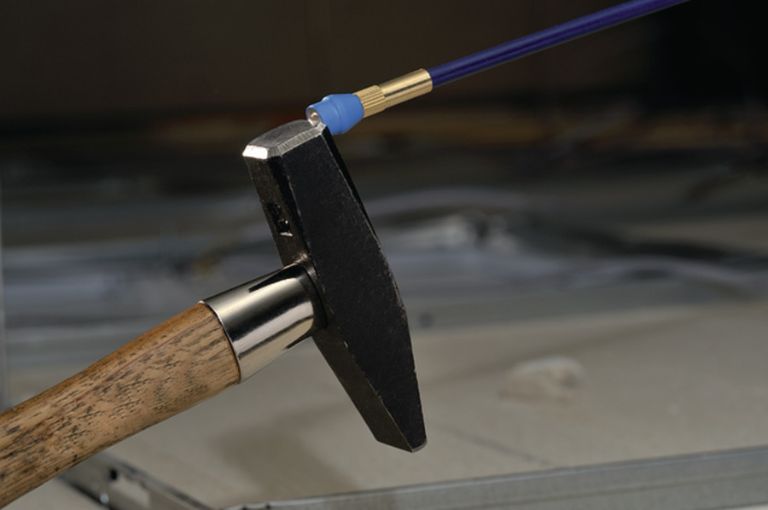

4. The strong magnet lifts a metallic tool of up to 2.5 kg.
In addition to cables, this also makes it easy to pull heavier metallic objects.
Type | Description | Article-No. |
---|---|---|
CS-SA | Accessory Kit: Includes a 15 cm long flexi lead, gender changer, mini hook, tuff hook, mini eye, split ring, round bullet, flat bullet, single magnet, chain |
897-90004 |
CS-ACG1630 | Cable Grip: Suitable for diameter 1.6 - 3.0 cm | 897-90027 |
CS-ACG0415 | Cable grips: Suitable for diameters 0.4 - 1.5 cm | 897-90026 |
CS-AW | Whisk / cable glider: Enables cables to glide over rough and uneven surfaces, easy pull | 897-90018 |
CS-AB | Beam: Useful for inspection purposes in dark surroundings, e.g. behind walls | 897-90016 |
CS-AMG2 | Strong Magnet: A helpful tool to lift metal tools with up to 2.5 kg weight | 897-90015 |

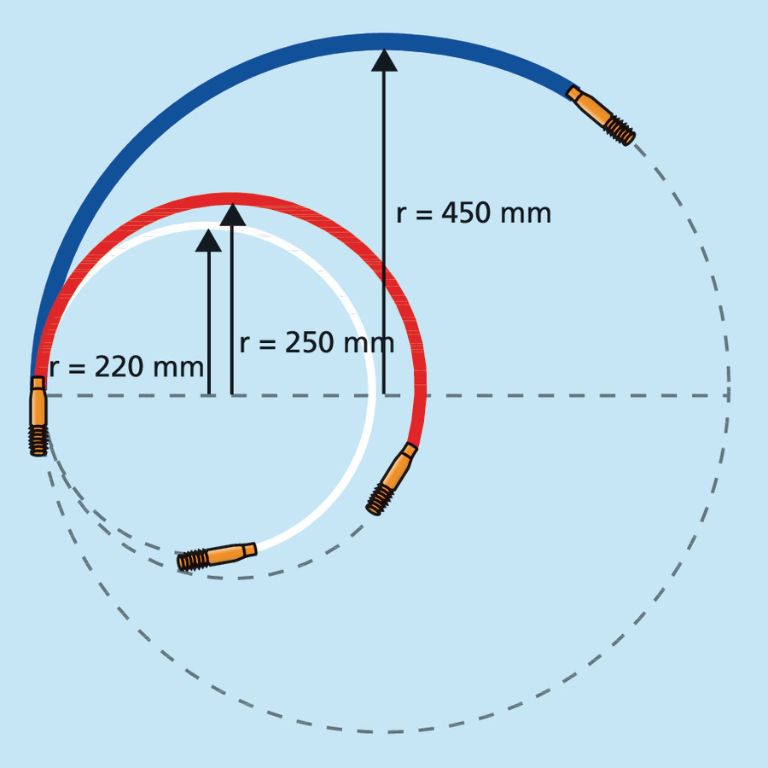

The flexible cable rods made of Fiberglass are simply screwed together and fitted with clever attachments. Three diameters and different bending radii guarantee high flexibility at work.
TYPE | Content Rods | Flexibility |
Ø D |
Article-No. |
CS-P6 | One pair of 1 m blue rods | strong | 6.0 | 897-90007 |
CS-PN |
One pair of 1 m nylon rods |
fully flexible | 5.0 |
897-90008 |
CS-P5 | One pair of 1 m red rods | medium | 5.0 | 897-90006 |
CS-P4 | One pair of 1 m white rods | flexible | 4.0 | 897-90005 |
Cable pulling tools are used in the installation or removal of cables in hard-to-reach places as it provides mechanical advantage and leverage to help pull cables through conduits, ducts or other pathways. Here are some common places where a cable pulling tool can be used:
The specific tools required for a particular cable pulling task depend on factors such as the type and size of cables, the installation environment, and the distance or complexity of the route. HellermannTyton offers three cable pulling tool sets: the Handy Kit is made to fit in a tool box, the Basic Kit is designed for basic cable installation and the Deluxe Kit is intended for carrying out larger installations. The sets come with cable rods in different lengths and with additional accessories including hooks, magnets, lights and storage bags.

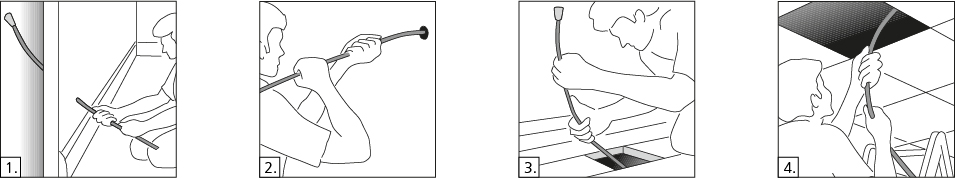

Before using the cable rods, assess the installation requirements. This includes the distance to be covered, the type and size of cables, any obstacles in the pathway and the necessary load capacity for pulling. Next, select the appropriate cable pulling tool factoring in the weight and diameter of the cable and any specific challenges. Then connect the cable to the pulling tool. Ensure a secure connection to prevent the cable from detaching during the pulling process.
Start the pulling process by applying tension to the tool. As the cable is being pulled, ensure that there is no resistance and the cable does not get stuck. If this happens however, assess the situation and make adjustments accordingly. This may involve changing the angle or direction of the pull or using additional tools or techniques. Continue pulling the cable until it reaches the desired final position.
The cable rods are manufactured from high quality fibreglass which caters for a load carrying capacity of up to 200 kg (approx. 440 lbs).
