RELICON cable joints are suitable for universal application as branch or straight through joints in low-voltage electrical installations.
They are the cable jointing product of choice of energy supply companies, industry and the electrical trade for permanently connecting cables buried in the ground.
Cable jointing is a necessary part of daily life for electrical engineers, and high expectations are placed on the end result. A cable joint protects cables against moisture ingress, dust and penetration by foreign objects.

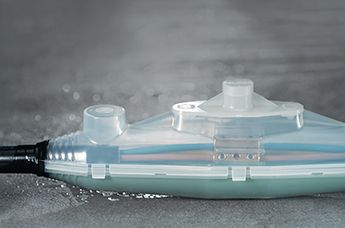

RELICON cable joints are longitudinally and laterally waterproof. The sets are available in various sizes as straight through i-Line joints and also as Y-Line and T-Line branch joints. They can be used for cable jointing underground, under water or in installation ducts, for example for connecting buildings to the mains supply.
RELICON cable joints are resistant to environmental influences and are non-toxic. HellermanTyton offers polyurethane and epoxy-based resins (eg PUR 33 cast resin) in its product range. These are suitable for the majority of cable jointing requirements in low voltage systems.
Thanks to our optimised "Safe Filling" (SF) system, the installer is protected from coming into contact with the cast resin whilst the cast resin is mixed and the joint sleeve is filled. This means that working with RELICON resin cable jointing kits is always a safe, clean and efficient process.
The transparent cast resin bag is connected to the moulding sleeve by means of a filler pipe and an adapter so that the cast resin mixture can be poured easily. The excellent flow properties of our cast resins make filling simple and the transparent material used for the cable jointing sleeve shells guarantees optimum visual monitoring of the filling process at all times.
A ring in each cast resin bag makes it easy to position and connection the special SF filler pipe. After the filler pipe is securely attached to the mixture bag with an adapter ring, the filler pipe can be inserted firmly into the opening of the upper joint shell.
Step 1: Transparent two-chamber pouch for a optimized visual inspection of the mixing process.
Step 2: The middle cold seal between the resin and harder component opens by means of pressure.
Step 3: Simple mixing of the two components.
Step 4: The patented color change gives the correct mixing process.
Step 5: The filling nozzle in combination with the adapter makes filling the joint very easy and efficient.
Step 6: Automatic and leakproof opening of the pouch through installation of the filling nozzle.
RELICON i-Line straight-through joints are made for installations in low-voltage electrical networks. This cable jointing is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables.
Application: Connections in industrial buildings, power supply in the ground, outdoors and in the water.
RELICON branch cable joints T-Line and Y-Line are made for installations in low-voltage electrical networks. These resin cable jointing kits are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: connections in industrial buildings, power supply in the ground, outdoors and in the water.
PA-11 58/230, PA-12 75/300 and PA-13 95/420 are universal straight-through and branch cable jointings available with either cast resin Reliflex (no hazardous labeling) or cast resin PUR 33. Depending on the connector they can be used for single- and double branch-off. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: In low-voltage electrical networks as well as for signal and communication cables; for power supply lines for outdoor lighting and for cable repairs; underground, submerged, outdoor, indoor and wiring ducts.
PAH-1 120/290, PAH-2 130/300, PAH-3 135/360 and PAH-4 140/420 are universal straight-through and branch cable jointings. PAH-2, PAH-3 and PAH-4 are available with either cast resin Reliflex (no hazardous labeling) or cast resin PUR 33. They are suitable as single branch joints with commercial branch clamping rings for polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: In low-voltage electrical networks as branch joint for building connections; underground, submerged, outdoor, indoor.
The RELICON PUR 33 cast resin for cable jointing has been created for the electrical insulation and mechanical protection of cable connections in low-voltage electrical networks. Also suitable as mechanical and moisture protection on medium-voltage cable connections. Application: for indoor and outdoor use.
RELICON cast resin joints reliably protect your cable connections - even under extreme conditions. Learn more here in this video:
HellermannTyton offers many other solutions for electrical insulation and moisture protection in the low-voltage range. One example is the transparent, saltwater-resistant and removable 2-component gel RELICON KH 67. The 2-component gel RELICON KH 100 has similar properties and can be easily applied with a standard cartridge gun.
You can find more information about our gels and gel joints here on a separate page.
The cast resin and hardener are in a transparent two-chamber bag. When the bag is kneaded, the inner seam breaks and the two components can mix. During mixing, the mass changes colour. The transparent bag makes it possible to see when the mass is homogeneously mixed.
The advantage of the integrated filling funnel is the safe and clean filling of the joint shell without you coming into contact with the cast resin.
Mechanical protection is intended to protect the cable from physical influences such as impact (due to excavation work), movement, abrasion, tensile forces, traffic vibration (sub-standard work by construction workers, vehicle movement rattles the installation), vibration and pressure (e.g. due to earth masses, water or weight of the cable).
Mechanical protection often also provides protection against thermal stress.
HellermannTyton cast resin joints are tested according to EN 50393, which corresponds to DIN VDE 0278-393. EN 50393 includes the following test procedures:
The degrees of protection are indicated by an abbreviation code consisting of the letters IP ("International Protection") and two numbers for the degree of protection. The first number represents the protection against contact and penetration of foreign bodies and dust, while the second number represents the protection against water ingress. Our cast resins have protection class IP68, which means the following:
6 = protection against dust ingress and physical contact
8 = Protection against permanent immersion
HellermannTyton cast resin sleeves automatically meet the requirements of protection class IP68 and the higher requirements of EN 50393 due to their design. For this reason, a separate test is not necessary, which means that we do not publish the IP68 protection class.
All HellermannTyton cast resins are labelled SVHC-free. This means that the cast resins do not contain hazardous substances and can be processed as such. However, to mitigate any risk of skin contact, we supply you with protective gloves. We advise you to wear them during the complete mixing and filling process. Should you nevertheless come into contact with a cast resin, wash the area under running water or use our Reliclean cloths.
The shelf life of our cast resins varies. In general, the following storage times apply when stored properly in the original packaging at +5 °C to +40 °C:
As soon as the two cast resin components are homogeneously mixed and have reacted, the cured cast resin is harmless to the environment and is not hazardous waste. Therefore, old cast resin joints and cured cast resin residues can be disposed of in normal household waste. Please note that cast resins must be processed and cured according to the packaging instructions before disposal. For larger quantities, contact the respective disposal company beforehand to ensure proper disposal, as these are regulated differently in some regions.
