Pneumatic tensioning tool plastic housing : SP MK9P replacement blade

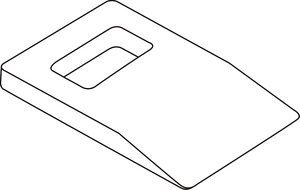

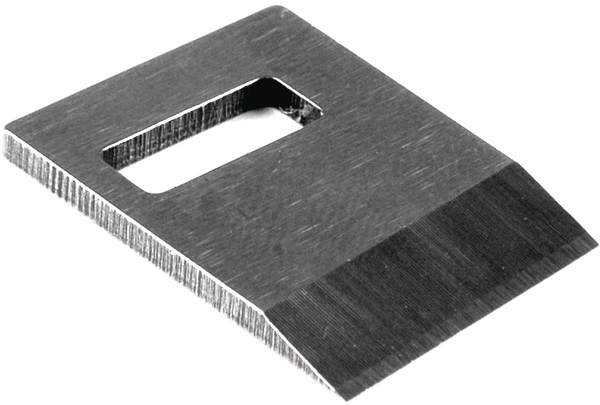

Replacement Blade, Article number: 110-09111


  • Tool made of heavy duty parts to ensure optimum performance in demanding environments
  • Ideal for heavy-duty ties (T50-T250), clamp and button head ties
  • Same ergonomic improvements as the MK7P
  • Low weight, comfortable grip and easy trigger depression
  • Very durable, with adjustable, easy to read tension settings
  • Lock-out features available
  • Comes with lower air attachment, and optional upper air attachment

Certifications & Approvals

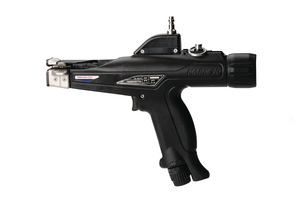

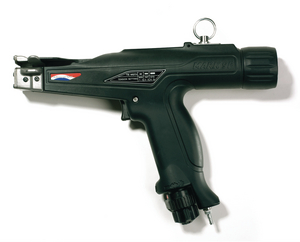

The MK9 P is constructed with heavy duty parts to ensure optimum performance. It is ideally designed to apply heavy-duty ties like they are used in vehicle construction like trucks, busses and railways.

MK9P up to 13.5 mm strap width is suitable for following markets and industries

Air Pressure (min.) 3Bar
Air Pressure PSI 90Psi
Colour Metal (ML)
Description Replacement Blade
for Air Pressure min - max 3 - 6 Bar
Operation pneumatic
Pack Content 1pc.
Product Family MK9P up to 13.5 mm strap width
Product Group Pneumatic tensioning tool plastic housing
Tension Setting Tools Adjustable
Tool property Automatic cut off
Tool suitable cable tie material Plastic
Air Pressure (max.) 6Bar
Air Supply non oiled / oiled
Hose Internal Diameter 4.0mm
L x H x W approx. 280 x 200 x 55 mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Metal (MET)
Material MET
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026270142
Packaging 1 - Height (m) 0.012m
Packaging 1 - Length (m) 0.114m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0001
Packaging 1 - Weight (kg) 0.009kg
Packaging 1 - Width (m) 0.073m
Weight 0.004kg
UNSPSC Key 39121703
