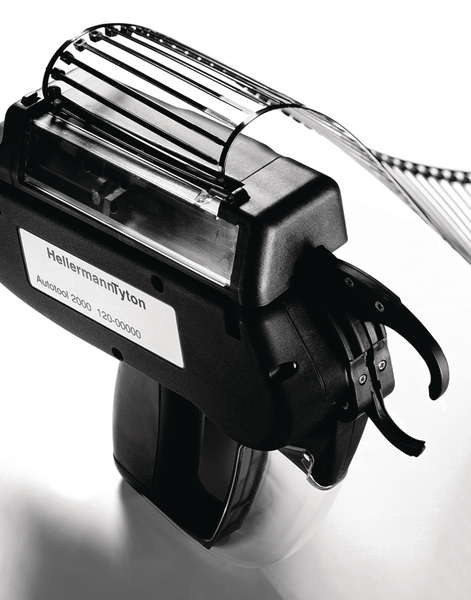

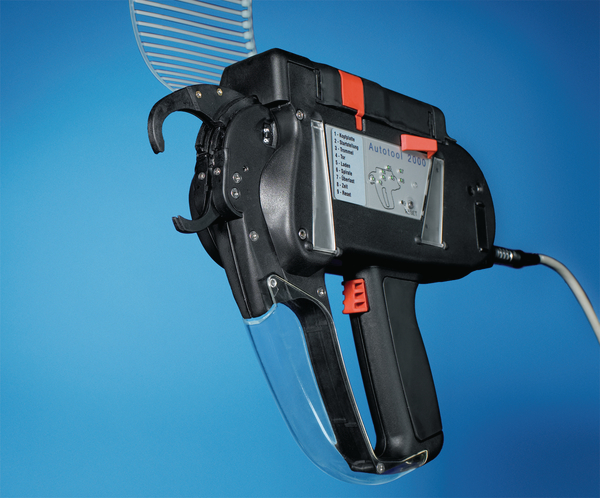

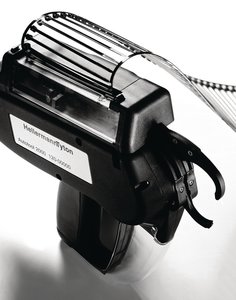

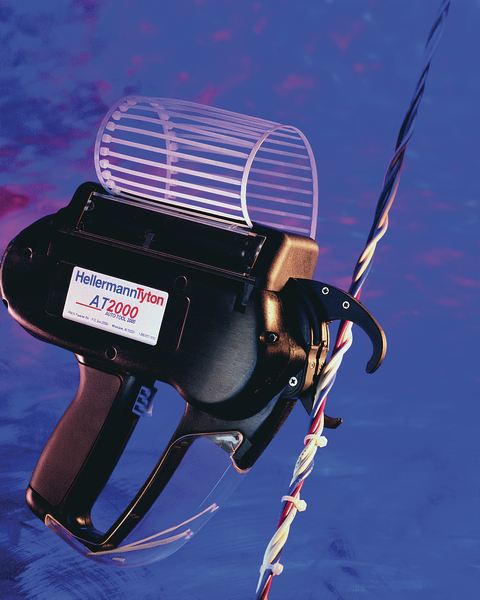

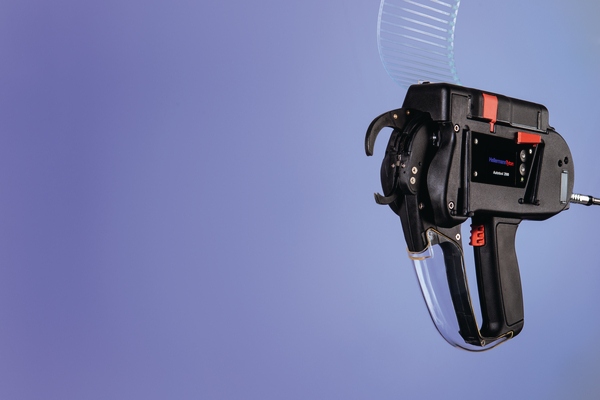

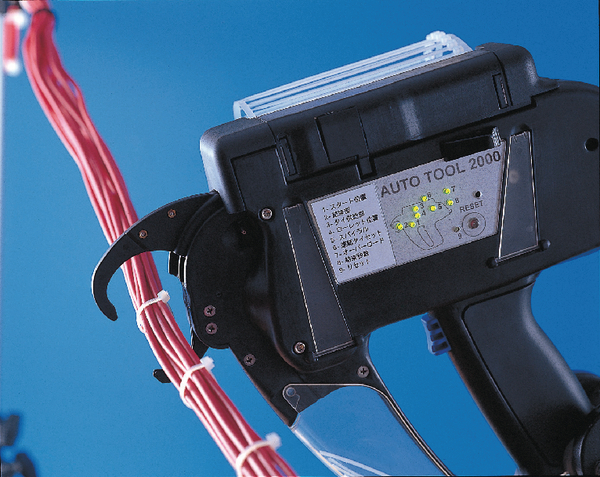

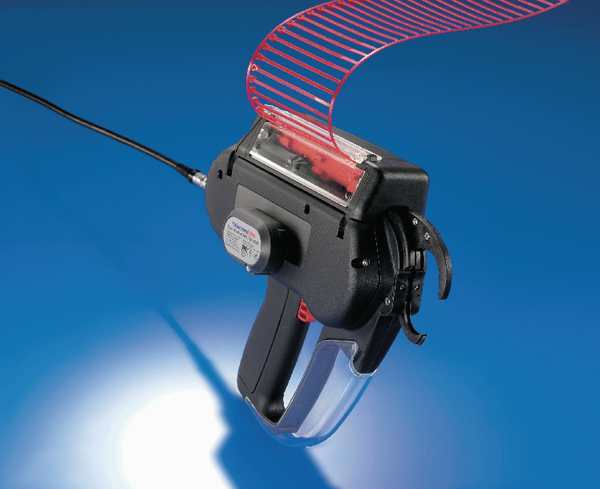

Automatic cable tie tool Dmax=20.0mm, for 2.5mm, 4.187kg, black
Art.-No. 120-00000
| Autotool 2000-MET/PL-BK
|
Details
This product is not available anymore.
Alternative product available
- Electronically operated automatic cable tying system
- Speeds up binding process
- Consistent, high-quality bundling, threading and cutting
- Very easy to use
- Operator guide via menu
- Different Languages adjustable
- Binding speed of 0.8 seconds per cycle
- Handles bandolier of 50 or reels of 3500 cable ties
- Automatic bundling up to Ø 20mm
- Flush cut off
- Troubleshooting via menu navigation
- Adjustable binding force and electronic fault diagnosis
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Request your individual offer now
Request quote
More products in this product group:
Application | The reliability, ergonomics, simple handling and flexibility makes the HellermannTyton Autotool 2000 ideal for the diverse applications where high quantity is required, e.g. in cable assemblies for automotive, electronics, TV and domestics appliances, packaging of bags and the bundling of parts together. The system suits both the high volume use of ties or where flexible production practices are necessary. Overall the Autotool 2000 gives full, flexible and cost effective utilization of labour and maximises efficiency. |
Battery charger | Standard charger without memory effect |
Bench mount kit | Bench Mount Kit with foot pedal operation |
Colour | Black (BK) |
Description | Autotool 2000 |
For Ties | T18RA50, T18RA3500, T18RA50HSW, T18RA5000, T18RA5000HSW |
Harness board accessory HH20 | Bundle Ø max. 20 mm, standoffs are used as spacer for an optimal bundling, Bundle height 45-25 mm |
Material | Metal (MET), Plastic (PL) |
Operation | electrical |
Overhead Suspender | Overhead suspension unit with spring balance |
Pack Content | 1pc. |
Package Content packed in | pcs. |
PART DESCRIPTION | Autotool 2000-MET/PL-BK |
Power Supply unit | Electrical: - 240/100 V a.c. Mains Output: - 24,5 V d.c. max. 150 W |
Product Family | Autotool 2000 |
Product Group | Automatic bundling up to Ø 20 mm |
Tool suitable cable tie material | Plastic |
Wattage | 50W |
Bundle Diameter max (metric) | 20.0mm |
Bundle ∅ min. | 0.7mm |
Cycle Time | 0.8 sec |
Height (H) | 75mm |
Length (L) | 290mm |
Max. Tie Width (G) | 2.5mm |
Max. Tie Width (G) | 2.5mm |
Min.Tensile Strength | 80N |
Operational Voltage | 24,5 V |
Power Supply | Electrical, with Switching Power Pack |
Strap Width max. (G) | 0.1" |
Tension Setting | Adjustable |
Width (W) | 65mm |
|
|
GTIN-13 / EAN | 4031026111308 |
Packaging 1 - Height (m) | 0.144m |
Packaging 1 - Length (m) | 0.383m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.02598m³ |
Packaging 1 - Weight (kg) | 4.187001kg |
Packaging 1 - Width (m) | 0.471m |
Packaging 3 - Height (m) | 0.168m |
Packaging 3 - Length (m) | 0.481m |
Packaging 3 - Qty | 1 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0396m³ |
Packaging 3 - Weight (kg) | 4.547kg |
Packaging 3 - Width (m) | 0.49m |
Packaging 4 - Height (m) | 1.152m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 12 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.106m³ |
Packaging 4 - Weight (kg) | 75.564kg |
Packaging 4 - Width (m) | 0.8m |
