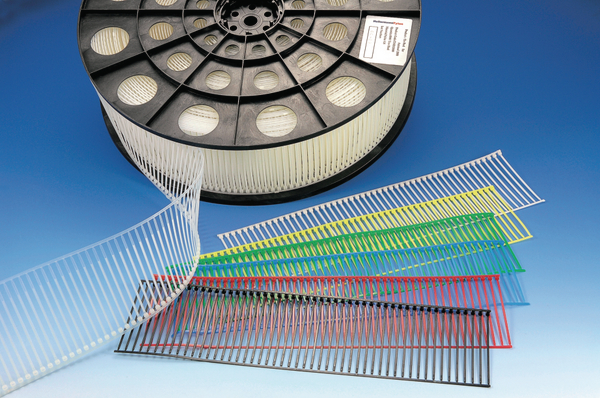

Cable tie for autotools, bandolier, 100x2.5mm, Dmin=0.7mm, Dmax=16.0mm, white, 5000pcs.
Art.-No. 105-00032
| AZ100-PA66V0-WH
|
Copied
- Automatic binding machine of desk type and air type (maximum binding diameter: 16.0 mm).
- •Desktop installation type. Bundled by pressing the foot pedal that you can work with both hands.
- •Easy to install anywhere with power supply (AC100V ~ AC240V) and air supply equipment.
- •A stable and reliable bundling operation.
Request your individual offer now
Request quote
More products in this product group:
| Application | Harness Binding |
| Colour | White (WH) |
| Identification Plate Position | none |
| Material | Polyamide 6.6 V0 (PA66V0) |
| Min.Tensile Strength | 80N |
| PART DESCRIPTION | AZ100-PA66V0-WH |
| Pack Content | 5000pcs. |
| Product Family | Autotool QS101 NEW |
| Product Group | Bench Mount Automatic bundling up to ⌀ 16 mm |
| Releasable Closure (Yes/No) | No |
| Tool suitable cable tie material | Plastic |
| Type | AZ100 |
| Variant | bandolier |
| Flammability | UL 94 V0 |
| Operating Temperature | -40 °C to +105 °C |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275 |
| UL File link | Link |
| UL Recognized (US) | Yes |
| UL-File Number | E64962 |
| GTIN-13 / EAN | 4944387104257 |
| Packaging 3 - Height (m) | 0.312m |
| Packaging 3 - Length (m) | 0.46m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.066m³ |
| Packaging 3 - Weight (kg) | 6.34kg |
| Packaging 3 - Width (m) | 0.46m |
| Packaging 4 - Height (m) | 1.9m |
| Packaging 4 - Length (m) | 1.1m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 2.299m³ |
| Packaging 4 - Weight (kg) | 126.8kg |
| Packaging 4 - Width (m) | 1.1m |
| Reel Diameter | 18" |
| Reel Diameter | 450.00mm |
| Reel Weight | 2.46kg |
| Reel Weight | 4.8lbs |
| Reel Width | 5.20" |
| Reel Width | 132mm |
