Aluminium frame mount, W=7.9mm, T=4.0 - 4.8mm, natural, 100pcs.
Art.-No. 151-01612
| AFLM40-1-PA66-NA
|
Copied
- AFLM can be easily attached to aluminum frames, which are indispensable for equipment units used at production sites.
- AFLM offers exceptional versatility as it can fit into frames from the major aluminum frame manufacturers.
- Can be attached to an aluminum frame in just one second. Simply rotate to lock in place.
Request quote
More products in this product group:
| Colour | Natural (NA) |
| Fixation Method | Profile rail |
| For Ties | T18 - T50 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | AFLM40-1-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | AFLM series |
| Product Group | Fixing mount for aluminum frame |
| Type | AFLM40-1 |
| Typical Application | Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles. |
| UV-Stabilised | No |
| For Pipe Size/Type |
Applicable Aluminum Frames: 40mm/45mm square type Panel Thickness: 5.5～6mm Slot Width:10mm |

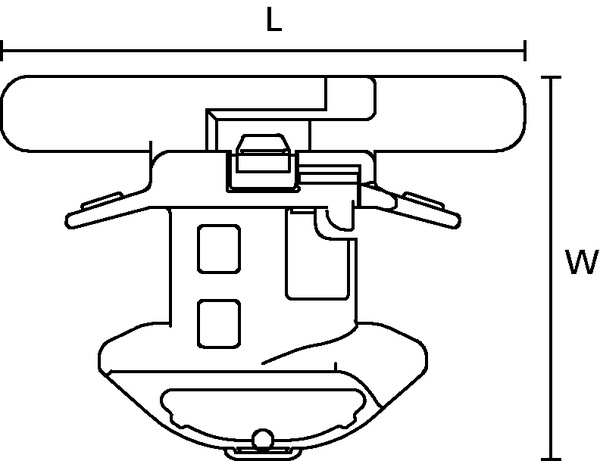

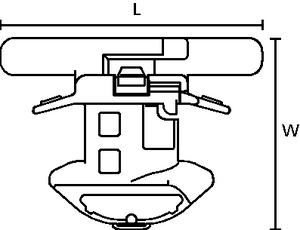

| Height (H) | 20.2mm |
| Length (L) | 28.0mm |
| Length (L2) | 13.5mm |
| Panel Thickness | 0.16 - 0.19" |
| Panel Thickness | 4.0 - 4.8mm |
| Panel Thickness max. (imperial) | 0.19" |
| Panel Thickness min. (imperial) | 0.16" |
| Width (W) | 21mm |
| Width (W2) | 7.9mm |
| for Panel Thickness min - max | 4 - 4.8 mm |
