17/06/2024

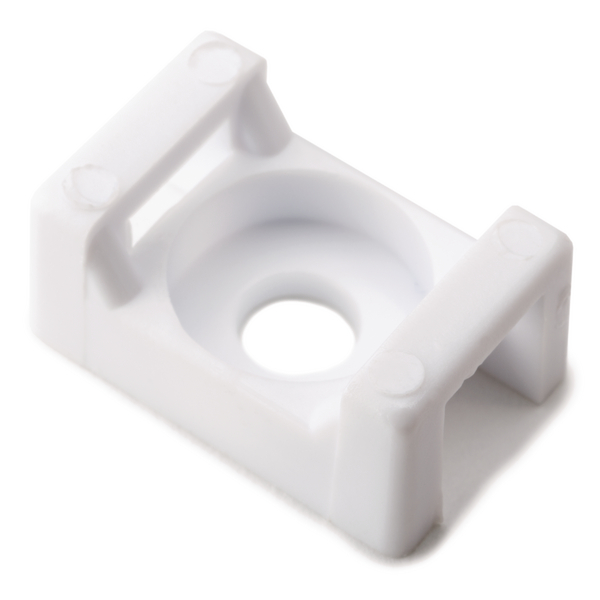

Cable tie mount for screw fixation, Ø3.8 mm, #6 (M3) Screw, white, 100pcs.
Art.-No. 151-30303 | CTM0-PA66-WH Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

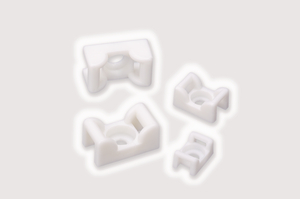

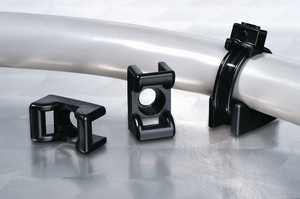

  • Mounts are available in various sizes and materials
Package size

Request your individual offer now

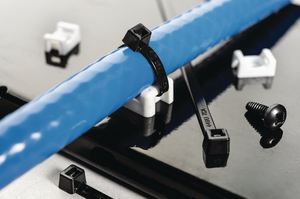

Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 7.9 mm wide.
Colour White (WH)
Fixation Method Screw Mount
For Ties T18 - T50
Material Polyamide 6.6 (PA66)
Mounting Screw Type #6 (M3) Screw
PART DESCRIPTION CTM0-PA66-WH
Pack Content 100pcs.
Package Content packed in bag
Product Family Cable tie mounts with curved design
Product Group Screw fixing mounts
Type CTM0
Height (H) 6.90mm
Length (L) 14.7mm
Max. Tie Width (G) 5.0mm
Strap Width max. (G) 0.2"
Width (W) 9.4mm
for Hole ∅ (FH) 3.8 mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised No
GTIN-13 / EAN 4031026312538
Packaging 1 - Height (m) 0.0775m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0019
Packaging 1 - Weight (kg) 0.050001kg
Packaging 1 - Width (m) 0.1225m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 15000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 7.21kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.219m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.17
Packaging 4 - Weight (kg) 183.2kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717

Request your individual offer now
