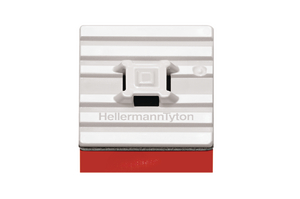

Cable tie mounts with high performance adhesive : FMB4APT-A
Cable tie mount 28x28 mm, high performance adhesive, heat stabilised, blackArticle number: 151-02219
Features
- Flexible Mount for round and angled surfaces
- FMB mounts with homogeneous system of acrylic adhesive
- Allows greater design freedom and offers uniform stress distribution along with weight reduction
- Innovative fixing solution for high and low energy surfaces
- Protection foil with finger lift for easy peel off
- 4-way entry for cable tie for quicker and more flexible installation
- FlexTack Cable tie mounts are also suitable for high energy surfaces like metal or glass.
Certifications & Approvals
Application
FlexTack cable tie mounts can be successfully applied to a variety of high- and low-energy surfaces such as glass, metals (including painted, varnished or powder-coated surfaces) as well as plastics. FlexTack provides a reliable fixing solution where it is impractical to use screws or bolts. The unique design in combination with the special acrylate adhesive makes professional cable management easy.
More products in this product group
Cable tie mounts with high performance adhesive >| Colour | Black (BK) |
| Fixation Method | Self-Adhesive |
| Pack Content | 100pcs. |
| Package Quantity per | bag |
| PART DESCRIPTION | FMB4APT-A-PA66HS-BK |
| Product Family | FlexTack-Series FMB for round and angled surfaces |
| Product Group | Cable tie mounts with high performance adhesive |
|
|
|
| Height (H) | 6.3mm |
| Length (L) | 28.0mm |
| Max. Tie Width (G) | 5.4mm |
| Strap Width max. (G) | 0.2" |
| Width (W) | 28.0mm |
| Adhesive | Acrylate with base of acrylic foam |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Material | PA66HS |
| Operating Temperature - °C | -40 °C to +85 °C |
| Prop65 Warning | No |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026603025 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.155m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00502m³ |
| Packaging 1 - Weight (kg) | 0.17964kg |
| Packaging 1 - Width (m) | 0.27m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.632kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 213.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.396lbs |
| Weight | 0.1702kg |
