Cable tie mount for adhesive use, Ø3.2 mm, natural, 100pcs.
Art.-No. 151-00731 | LKCS/A-PA66-NA |  Details

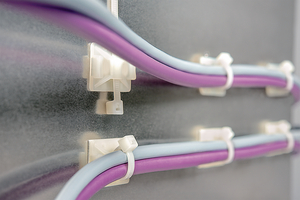

TY-Series selfadhesive mounts with rectangle design.

    • 2-way mounting base for safe guiding of cables and conduits
    • Suitable for applications with minimal space
    • Mounted before cable installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Where speed, simplicity, and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6 (PA66)
    Pack Content 100pcs.
    Package Content packed in bag
    PART DESCRIPTION LKCS/A-PA66-NA
    Product Family LK-Series Rectangle Design, self adhesive, screwable
    Product Group Cable tie mounts
    Fixing Hole Centres (F) 14.0mm
    Fixing Hole Centres (F2) 15.6mm
    for Hole ∅ (FH) 3.2 mm
    for Hole ∅ (FH2) 2.5mm
    Height (H) 6.0mm
    Length (L) 32.0mm
    Max. Tie Width (G) 7.6mm
    Width (W) 25.0mm
    Adhesive Rubber-based foam tape
    Adhesive Operating Temperature -10 °C to +50 °C
    Flammability UL 94 V2 (excluding adhesive)
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    Specifications
    GTIN-13 / EAN 7890176002181
    UNSPSC Key 39121717
