28/04/2024

Cable tie mount for screw fixation, Ø5.1 mm, natural, 500pcs.
Art.-No. 150-83499 | MSMP4-PA66-NA |  Details

MSMP4 mounting plate, screwable.

    • Allow multiple cables to run in parallel
    • Simple to fix with two screws
    • Cables are fixed by using a cable tie through any combination of the available slots
    Add to watchlist

    Request your individual offer now

     Request quote

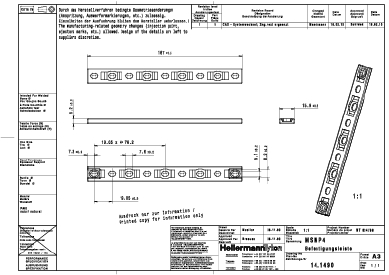

    Downloads CAD-Download
    Application Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
    Colour Natural (NA)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6 (PA66)
    No. of bundles 4
    Pack Content 500pcs.
    Package Content packed in pcs.
    PART DESCRIPTION MSMP4-PA66-NA
    Product Family MSMP-Series
    Product Group Mounting plates for screw fixing
    Fixing Hole Centres (F) 19.0mm
    for Hole ∅ (FH) 5.1 mm
    Height (H) 5.2mm
    Hole Size (HS) 7.6mm
    Length (L) 167.0mm
    Max. Tie Width (G) 8.2mm
    Width (W) 15.9mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Specifications
    GTIN-13 / EAN 4031026201672
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 4.330097kg
    Packaging 1 - Width (m) 0.545m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 268.76kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121717
