Cable tie inside serrated, 101.6x2.5mm, ⌀1.6-13.0mm, natural, 1000pcs.


???product.artNr??? 112-51904

| CTT20R-PA66-NA

 |

???product.copy???
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
CTT ties installed on flexible gaiters.
CTT series
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
CTT Hose Ties
For secure fixing of round and solid shapes.
CTT60R.
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.

    • Curved head design offers a good fit to the bundle
    • Inside serration for a strong hold onto bundles
    • Easy application either manually or with a processing tool
    ???product.packagingsize???
    ???product.detail.availability???
    ???downloads??? ???contentsearch.documenttype.HubELearning???
    ???product.application??? CTT is designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many different industries including automotive, white goods manufacturing, medical industry and construction.
    Colour Natural (NA)
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Min.Tensile Strength 90N
    PART DESCRIPTION CTT20R-PA66-NA
    Pack Content 1000pcs.
    Package Content packed in pack
    Product Family CTT-Series natural and black
    Product Group Cable ties for hose and gaiter
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type CTT20R
    UV-Stabilised No
    Variant Inside Serrated
    Bundle ⌀ max. 13.0mm
    Bundle ⌀ min. 1.6mm
    Length (L) 101.6mm
    Width (W) 2.5mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL File link ???product.externalLink??? ???product.externalLink??? ???product.externalLink??? ???product.externalLink???
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type 11
    UL-File Number E64139
    GTIN-13 / EAN 4031026425788
    Packaging 1 - Qty 1000
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 0.2812kg
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    UNSPSC Key 39121703

    ???product.similarProducts???

    CTT20R-PA66-BK 112-51900
    Cable tie inside serrated, 101.6x2.5mm, ⌀1.6-13.0mm, black, 100pcs.
    ???myht.addtowatchlist???
    CTT20R-PA66HS-BK 112-51905
    Cable tie inside serrated, 101.6x2.5mm, ⌀1.6-13.0mm, black, 100pcs.
    ???myht.addtowatchlist???
    CTT20R-PA66-NA 112-51919
    Cable tie inside serrated, 100x2.5mm, ⌀1.6-13.0mm, natural, 100pcs.
    ???myht.addtowatchlist???
    CTT20R-PA66HS-BK 112-51960
    Cable tie inside serrated, 100x2.5mm, ⌀1.6-13.0mm, black, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66-BU 112-52103
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, blue, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66-NA 112-52104
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, natural, 100pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66-NA 112-52106
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, natural, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66HIRHSUV-BK 112-52108
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, black, 100pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66HIRHSUV-BK 112-52109
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, black, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66HIRHSUV-BK 112-52111
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, black, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66HS-BK 112-52112
    Cable tie inside serrated, 205x4.7mm, ⌀1.5-45.0mm, black, 100pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66HS-BK 112-52114
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, black, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66HSUV-BK 112-52115
    Cable tie inside serrated, 203.2x4.7mm, ⌀1.5-45.0mm, black, 1000pcs.
    ???myht.addtowatchlist???
    CTT60R-PA66-BK 112-56019
    Cable tie inside serrated, 205x4.7mm, ⌀1.5-45.0mm, black, 100pcs.
    ???myht.addtowatchlist???

    ???competences???

    Cable management for high temperature applications Cable management for high temperature applications

    Cable management for high temperature applications

    High temperature is a key issue for many industries. We can replace metal with plastics such as PA46, PEEK and E/TFE (Tefzel®) – even in applications involving a high operating temperature and without compromising on quality and performance. Find out more about HellermannTyton’s expertise in injection-moulded cable management solutions made from high-performance, high-end thermoplastic. Get in touch with us! Your suggestions might be our inspiration for a new product to meet the demands of your application.

    Cable management high temperature applications

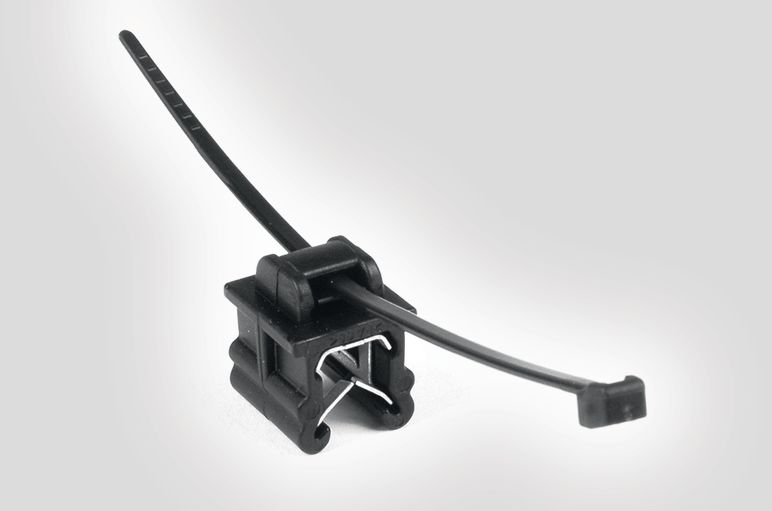

    Edge clips: fasten cables without drilling

    Edge clips are a cable-fastening solution that enables the flexible routing of wires, cable harnesses, conduits and pipes in a variety of industrial applications, including the automotive sector.

    Edge clips
    Cable Ties and Fixings Cable Ties and Fixings

    Cable Ties and Fixings

    Cable ties have to be able to meet the most varied demands these days as they are used in the widest range of operations – from the simple bundling of cables with cable ties to the absolutely specific use of cable ties under extreme conditions.

    Cable Ties

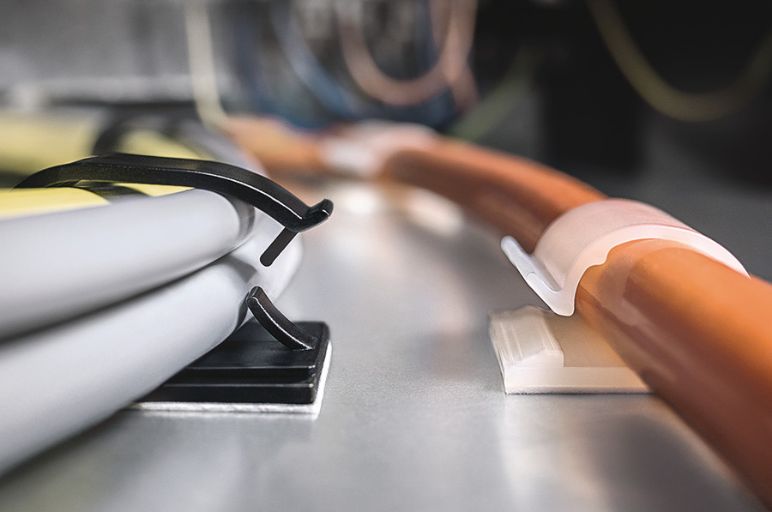

    Cable clips Cable clips
