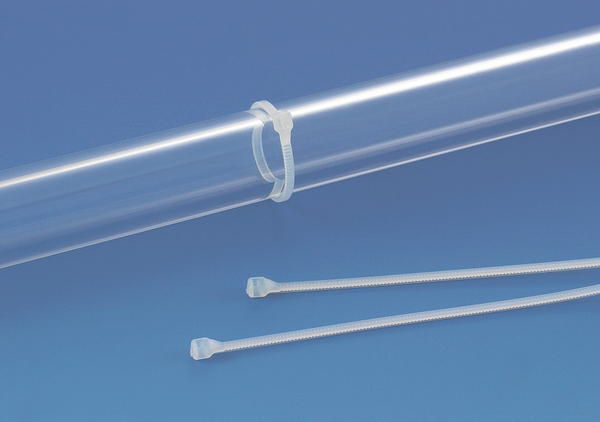

Cable tie inside serrated, 100.0x1.8mm, Ø1.0-22.0mm, natural, 1000pcs.
Art.-No. 111-01700 | SHT18R-PA66-NA Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Natural (NA)
Identification Plate Position none
Material Polyamide 6.6 (PA66)
PART DESCRIPTION SHT18R-PA66-NA
Pack Content 1000pcs.
Package Content packed in bag
Product Family T-Series in PA66 natural
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Type SHT18R
Variant Inside Serrated
Bundle Diameter max (metric) 22.0mm
Bundle ∅ min. 1.0mm
Cable Tie Head Height (metric) 2.6mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Thickness (T) 1.2mm
Width (W) 1.8mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL OCD link Link
UL Recognized (US and Canada) Yes
GTIN-13 / EAN 4031026285955
Packaging 1 - Qty 1000
Packaging 1 - Weight (kg) 0.2020kg
Packaging 3 - Height (m) 0.30m
Packaging 3 - Length (m) 0.45m
Packaging 3 - Qty 50000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0432
Packaging 3 - Weight (kg) 10.80kg
Packaging 3 - Width (m) 0.32m
Packaging 4 - Height (m) 1.04m
Packaging 4 - Length (m) 1.20m
Packaging 4 - Qty 750000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.998
Packaging 4 - Weight (kg) 182.0kg
Packaging 4 - Width (m) 0.80m
UNSPSC Key 39121703
