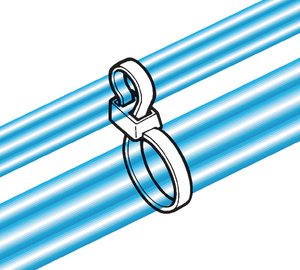

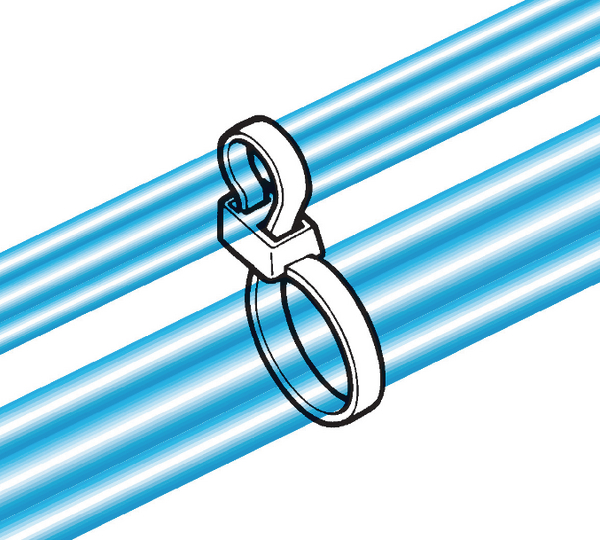

Cable tie inside serrated for multiple routing, 210.82x4.7mm, ⌀1.6-38.0mm, natural, 100pcs.
Art.-No. 117-05006
| T50RDH-PA66-NA
|
Copied
- Possibility to separate bundles with only one cable tie
- Cable tie with two heads creating an inside and outside serrated loop
- Available in a wide range of materials
- Bundles can be of different diameter
- Maximum bundle diameter is a maximum combined bundle
- Easy application either manually or with a processing tool
Show more
Show less
Request quote
More products in this product group:
| Application | Double loop head ties are ideal for separation of two cable runs without the need for additional cable ties. Additionally these ties are widely used within the packaging industry. The first loop closes and secures the bag whilst the second loop can be made into a carrying handle (subject to weight). |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Key product features | for multiple routing |
| Material | Polyamide 6.6 (PA66) |
| Min. Tensile Strength 2nd loop | 180.0N |
| Min.Tensile Strength | 225N |
| No. of bundles | 2 |
| PART DESCRIPTION | T50RDH-PA66-NA |
| Pack Content | 100pcs. |
| Package Content packed in | pack |
| Product Family | DH-Series |
| Product Group | Cable ties for parallel routing |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RDH |
| UV-Stabilised | No |
| Variant | Inside Serrated |
|
|
|
| ⌀ max. 1. loop | 44.4mm |
| ⌀ max. 2. loops | 19.0mm |
| Bundle ⌀ max. | 38.0mm |
| Bundle ⌀ min. | 1.6mm |
| Cable Tie Head Height (metric) | 6mm |
| Cable Tie Head Length (metric) | 13.5mm |
| Cable Tie Head Width (metric) | 8mm |
| Length (L) | 210.82mm |
| Minimum Tensile Strength 2nd Loop (imperial) | 40.0lbs |
| Strap Width max. (G) | 0.32" |
| Thickness (T) | 1.4mm |
| Width (W) | 4.7mm |
| CE Certification | Yes |
| CSA Certified | No |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL |
| UL File link | Link Link Link Link |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
