Cable tie outside serrated for narrow space, 180x9.0mm, ⌀10.0-42.0mm, black, 100pcs.
Art.-No. 112-18060 | PE180-PA66HSW-BK |

Copied
Low profile cable ties, RPE- and PE-Series.
PE400SH-Series - low head profile cable ties for secure fastening and identification in narrow spaces.
PE-Series

    • Outside serrated cable tie with a smooth surface to the bundle
    • Broad contact area with the bundle minimises risk of damage

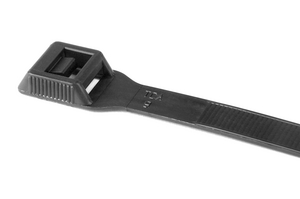

    • Low profile head for ideal use in restricted spaces
    • Parallel entry for optimal fit around circular bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These ties are particularly useful in areas with restricted space. The low profile design ensures that nothing snags on the heads. The outside serration of the tie with its smooth surface to the bundle avoids any damages to the insulation.
    Colour Black (BK)
    Fixation Method Others
    Identification Plate Position none
    Key product features for narrow space
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Min.Tensile Strength 445N
    PART DESCRIPTION PE180-PA66HSW-BK
    Pack Content 100pcs.
    Package Content packed in pcs.
    Product Family PE-Series
    Product Group Cable ties with low profile head
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type PE180
    UV-Stabilised Yes
    Variant Outside Serrated
    Bundle ⌀ max. 42.0mm
    Bundle ⌀ min. 10.0mm
    Length (L) 180mm
    Thickness (T) 1.7mm
    Width (W) 9.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Specifications IEC 60092 series
    GTIN-13 / EAN 5022660313721
    Packaging 1 - Height (m) 0.048m
    Packaging 1 - Length (m) 0.282m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.001840896m³
    Packaging 1 - Weight (kg) 1.100001kg
    Packaging 1 - Width (m) 0.136m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 33.62kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.258m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 54000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.208m³
    Packaging 4 - Weight (kg) 626.16kg
    Packaging 4 - Width (m) 0.8m
    UNSPSC Key 39121703
