03/07/2025

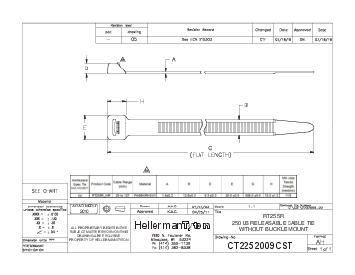

Releasable cable tie, 508.0x12.6mm, ⌀25.0-127.0mm, 1115N, black, 25pcs.
Art.-No. 115-01300 | RT255R-PA66HIRHSUV-BK |

Copied
Releasable cable tie features a head design with extended pawl for quick release of bundles.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features releasable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION RT255R-PA66HIRHSUV-BK
    Pack Content 25pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) Yes
    Type RT255R
    UV-Stabilised Yes
    Bundle ⌀ max. 127.0mm
    Bundle ⌀ min. 25.0mm
    Length (L) 508.0mm
    Max. Tie Width (G) 12.5mm
    Min.Tensile Strength 1115N
    Strap Width max. (G) 0.49"
    Width (W) 12.6mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
    Specifications UL-ZODZ2.E64139
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type 11
    UL-File Number E64139
    GTIN-13 / EAN 4031026422152
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.225m
    Packaging 3 - Length (m) 0.84455m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0446m³
    Packaging 3 - Weight (kg) 8.92kg
    Packaging 3 - Width (m) 0.23495m
    UNSPSC Key 39121703
