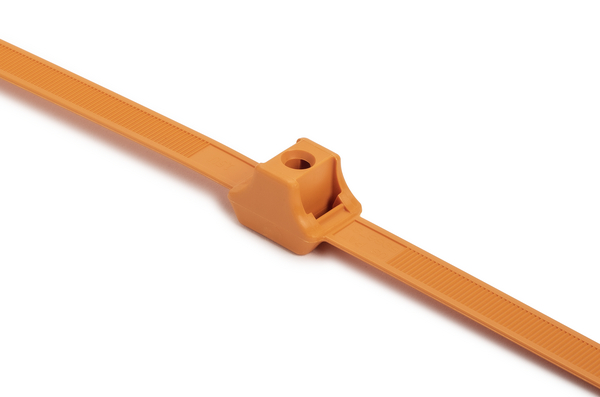

Fixing tie for stud, inside serrated, Ø6.4-58.0mm, orange, 500pcs.
Art.-No. 115-00176
| DCT11-PA66HIRHS-OG
|
Details
- Parallel seperation between hoses, wires, cables and tubing
- Abrasion protection
- Optional mounting hole for securing bundles along the Chassis of trucks, trails and heavy duty equipment
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Application Tool | ProCut 9 no battery, MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT |
| Colour | Orange (OG), High Voltage (HV) |
| Description | Dual Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of tracks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap. |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Key product features | for multiple routing |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| PART DESCRIPTION | DCT11-PA66HIRHS-OG |
| Product Group | 1-piece fixing ties for weld studs, for heavy duty applications, for parallel routing |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
Download
EVO9SP
110-80003
EVO9HT
110-80017
MK9P
110-09100
