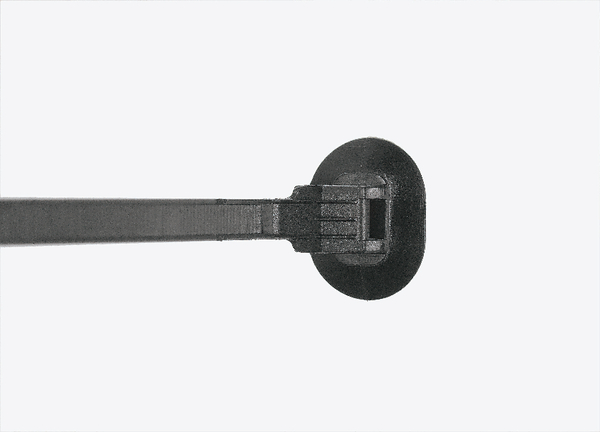

Fixing tie for hole (oval), outside serrated, Ø1.0-30mm, black, 100pcs.
Art.-No. 126-00131 | OS170-PM712-PA66HSUV-BK Details

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
  • Cable tie head always situated in a defined position
  • Versions for oval holes feature anti-twist protection
Show more

Request your individual offer now

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Arrowhead for oval holes
Identification Plate Position none
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION OS170-PM712-PA66HSUV-BK
Product Family for oval holes
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl

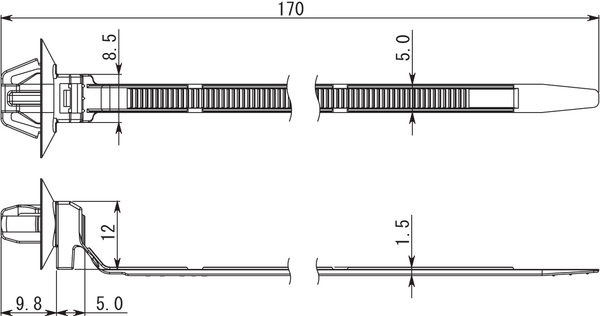

Bundle Diameter max (metric) 30mm
Bundle ∅ min. 1.0mm
Disc ∅ 16,0 x 21,0mm
Fixing Hole Shape Oval
for Hole ∅ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 1.6 mm
Height (H) 12mm
Length (L) 170mm
Min.Tensile Strength 150N
Thickness (T) 1.5mm
Width (W) 5.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
Specifications
GTIN-13 / EAN 4944387960310
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00254
Packaging 1 - Weight (kg) 0.162001kg
Packaging 1 - Width (m) 0.22m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 2500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0494
Packaging 3 - Weight (kg) 4.49kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 37500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 88.35kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
