Fixing tie for screw fixation, inside serrated, ⌀1.0-20.0mm, natural, 100pcs.
Art.-No. 113-00041 | T18MR-PA66-NA |

Copied
Screw mount style creates low insertion and high extraction force.
The mounting head ties can be easily screwed onto a panel.
Screw mount style creates low insertion and high extraction force.

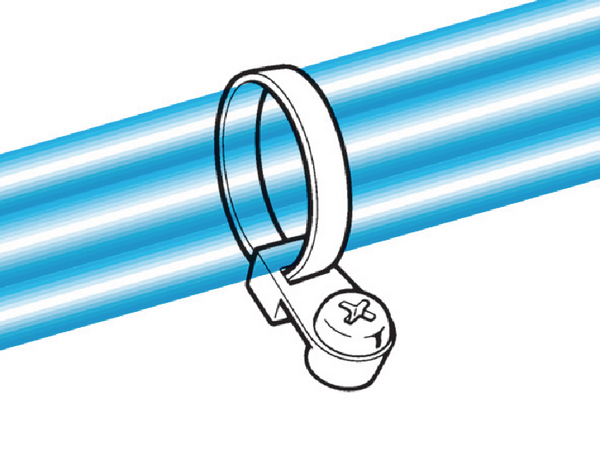

1-piece Screw Mount Cable Ties fasten with a screw or bolt to provide secure routing of cable bundles.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

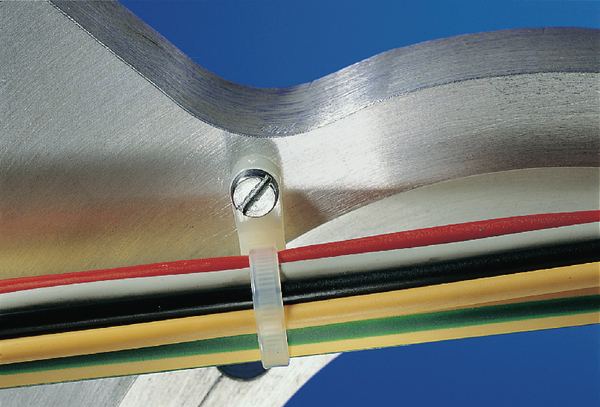

    Application The 'T' range of cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt.
    The REL range are releasable and re-usable. The tie is first fitted to the panel and then the cables added.
    Ideal for fixing cables into 'gaming machines', control panels, or for temporary installations on building sites.
    Colour Natural (NA)
    Fixation Method Fixing hole
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Min.Tensile Strength 80N
    Mounting Screw Type M3 Screw
    PART DESCRIPTION T18MR-PA66-NA
    Pack Content 100pcs.
    Package Content packed in bag
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T18MR
    Variant Inside Serrated
    Bundle ⌀ max. 20.0mm
    Bundle ⌀ min. 1.0mm
    Cable Tie Head Height (metric) 4.2mm
    Cable Tie Head Length (metric) 14mm
    Cable Tie Head Width (metric) 5.2mm
    Height (H) 4.2mm
    Length (L) 111mm
    Thickness (T) 1.1mm
    Width (W) 2.5mm
    for Hole ⌀ (FH) 3.1 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL File link Link
    UL Recognized (US) Yes
    UL-File Number E64962
    GTIN-13 / EAN 4944387201000
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
