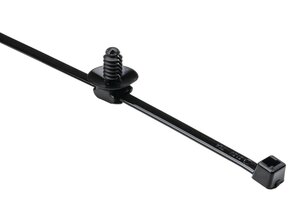

Fixing tie for hole (round), inside serrated, ∅1.0-22.0mm, black, 1000pcs.
Art.-No. 156-01270 | T18RFT5-MOD-PA66HS/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T18RFT5-MOD-PA66HS/PA66HIRHS-BK
Pack Content 1000pcs.
Package Content packed in bag
Product Family Fir tree parts FT5
Product Group 2-Piece Fixing Ties with Fir Tree, with Wings, for Round Holes
Tie Closure plastic pawl
Type T18RFT5-MOD
Bundle Diameter max (metric) 22.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 11.0mm
Length (L) 100.0mm
Min.Tensile Strength 80N
Width (W) 2.5mm
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026487625
Packaging 1 - Height (m) 0.11m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00485
Packaging 1 - Weight (kg) 0.505001kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.22m
Packaging 3 - Length (m) 0.57m
Packaging 3 - Qty 12000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0495
Packaging 3 - Weight (kg) 8.62kg
Packaging 3 - Width (m) 0.395m
Packaging 4 - Height (m) 1.19m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.142
Packaging 4 - Weight (kg) 158.6kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
