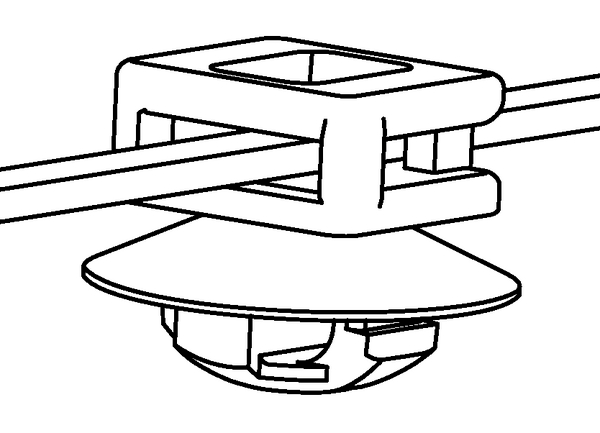

Fixing tie for hole (round), Ø36.0mm, natural/black, 500pcs.
Art.-No. 156-02781 | T30R-KSFT9-SQ-PA66-NA/BK | Details

Being a two-piece assembly allows the tie head to be located in the most convenient position.

Pre-assembled 2-piece fixing tie with arrowhead foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Arrowhead simply locks into place
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

2-piece fixing ties with arrowhead, with disc >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Colour	Natural (NA), Black (BK)
Fixation Method	arrowhead
Identification Plate Position	none
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	T30R-KSFT9-SQ-PA66-NA/BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	2-piece fixing ties with arrowhead, with disc, for round holes
Product Group	2-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T30R-KSFT9-SQ

Product Dimensions

Bundle Diameter max (metric)	36.0mm
Disc ∅	16.0mm
Min.Tensile Strength	135N
Panel Thickness max.	0.7 - 1.0mm
for Hole ∅ (FH)	9.0 x 9.0 mm (square)

Downloads

Technical drawing 19-0181-001-CSG

Download

Specifications

ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
ROHS compliant	Yes

Logistics and Packaging


GTIN-13 / EAN	4031026630700
Packaging 1 - Qty	500
Packaging 1 - Weight (kg)	0.690001kg
Packaging 3 - Qty	4000
Packaging 3 - Weight (kg)	6.34kg
Packaging 4 - Height (m)	1.244m
Packaging 4 - Qty	80000
Packaging 4 - Weight (kg)	147.8kg

More Information

UNSPSC Key

39121717
