Fixing tie for hole (round), inside serrated, Ø1.0-34mm, natural, 100pcs.
Art.-No. 126-00050 | T30RSF-PA66-NA Details

  • Easy to assemble without the need for a tool
  • Fixing tie with arrowhead without wings
  • Arrowhead simply locks into place
  • Cable tie head always situated in defined position
Package size

Request your individual offer now

Application The arrowhead design is usefull in areas with limited space.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION T30RSF-PA66-NA
Product Family without wings and disc, for round holes
Product Group 1-Piece Fixing Ties with Arrowhead
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 34mm
Bundle ∅ min. 1.0mm
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.9 - 2.8 mm
for Panel Thickness min - max 0 - 0.1 "

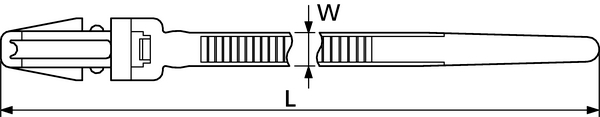

Length (L) 154mm
Min.Tensile Strength 135N
Panel Thickness 0.04 " – 0.11"
Panel Thickness max. 0.9 – 2.8mm
Panel Thickness max. (imperial) 0.11"
Panel Thickness min. (imperial) 0.035"
Width (W) 3.5mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Specifications
UL-File Number E193818
GTIN-13 / EAN 4944387208009
UNSPSC Key 39121703
