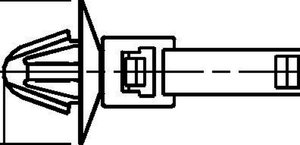

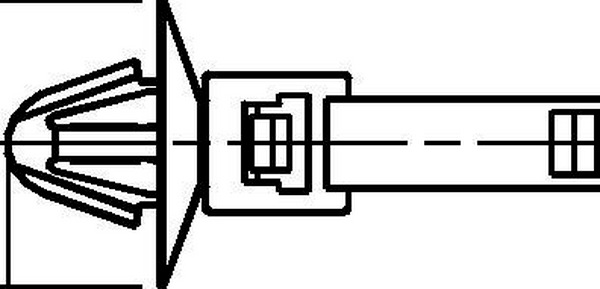

Fixing tie for hole (round), inside serrated, Ø10.0-59.0mm, black, 100pcs.
Art.-No. 111-85890 | T50MD7-PA66-BK Details

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
  • Cable tie head always situated in a defined position
  • KSFT-types with specially rounded arrowhead minimise the assembly height
Show more
Package size

Request your individual offer now

Application With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
Anti rotation (Yes / No) NO
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO9, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Content 100pcs.
Package Content packed in pcs.
PART DESCRIPTION T50MD7-PA66-BK
Product Family for round holes
Product Group 1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 59.0mm
Bundle ∅ min. 10.0mm
Disc ∅ 16.0mm
Fixing Hole Shape Circular
for Hole ∅ (FH) 6.8 - 7.2 mm
for Panel Thickness min - max 0.8 - 2 mm
Length (L) 225.0mm
Min.Tensile Strength 225N
Thickness (T) 1.5mm
Width (W) 5.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
GTIN-13 / EAN 5022660328985
Packaging 1 - Height (m) 0.068m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00367
Packaging 1 - Weight (kg) 0.205201kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 4.724kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.258m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.208
Packaging 4 - Weight (kg) 106.032kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
