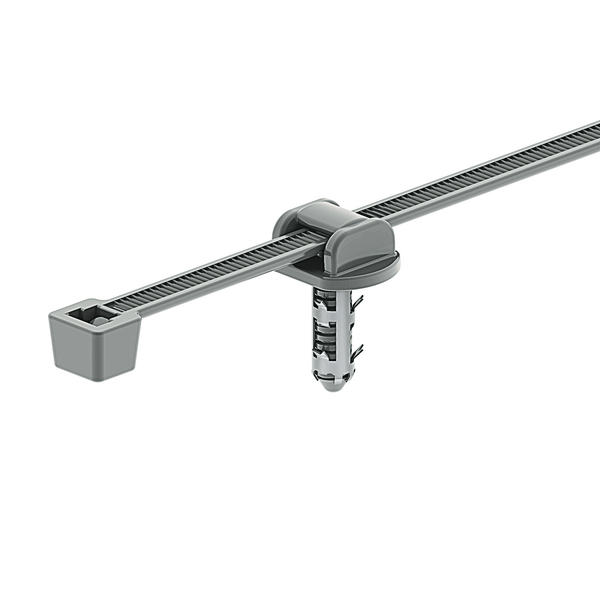

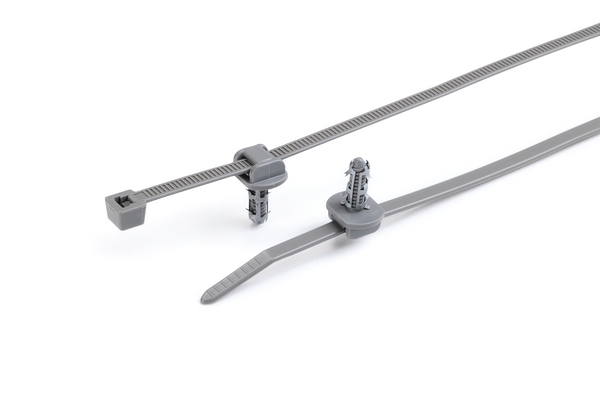

Fixing tie for hole (round), inside serrated, Ø1-45.0mm, grey, 1000pcs.
Art.-No. 156-01203 | T50RDHA5.5x15-PA46-GY Details

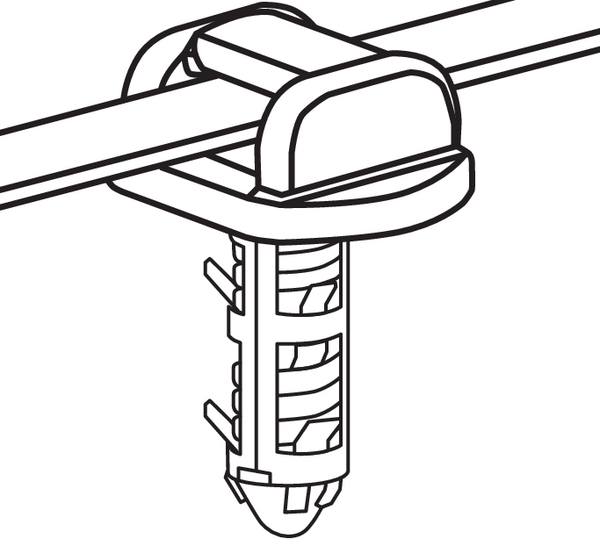

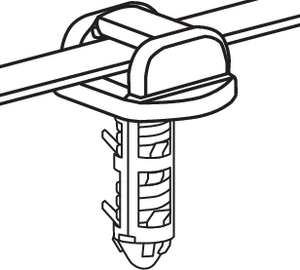

  • Pre-assembled 2-piece fixing tie with deep hole anchor
  • The high 'pull off' forces are due to the integrated metal clamp
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Suitable for use within blind holes with or without thread
Show more

Request your individual offer now

Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Grey (GY)
Identification Plate Position none
Key product features deep hole anchor
Material Polyamide 4.6 (PA46)
PART DESCRIPTION T50RDHA5.5x15-PA46-GY
Pack Content 1000pcs.

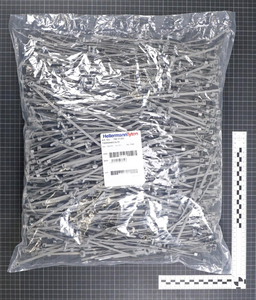

Package Content packed in bag
Product Family Deep hole anchor DHA5.5 - DHA8.4
Product Group 2-piece fixing ties with deep hole anchor, with disc, for round holes
Type T50RDHA5.5x15
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 1mm
Height (H) 20.15mm

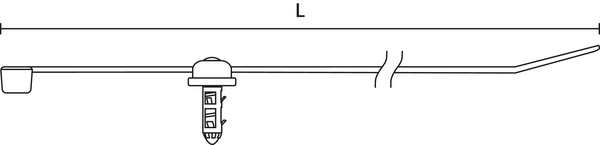

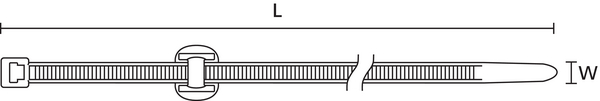

Length (L) 202.0mm
Min.Tensile Strength 225N
Width (W) 4.6mm
for Hole ∅ (FH) 5.4 - 5.6 mm
for Panel Thickness min - max 15
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026477848
Packaging 1 - Height (m) 0.105m
Packaging 1 - Length (m) 0.545m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.02718
Packaging 1 - Weight (kg) 2.365597kg
Packaging 1 - Width (m) 0.475m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 10.594388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 148.152kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
